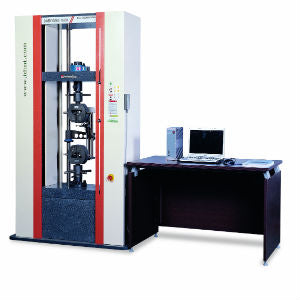

Precision, reliability, and versatility define the DTU-M-50 kN Universal Testing Machine. Engineered for high-accuracy tensile, compression, and bending tests, this system delivers exceptional stability and repeatability across a wide range of materials. Its robust 4-rod frame with dual precision ball screws, combined with a smooth belt-drive system, ensures controlled and consistent motion throughout every test.
Built for laboratories, R&D centres, and production facilities, the DTU-M-50 kN supports key international standards including ASTM A370, ASTM F606, and ISO 898-1, making it ideal for the metal & alloy industry, polymer and rubber testing, and general material evaluation.
A powerful DTU-2000X DSP controller provides high-speed, high-resolution data acquisition, guaranteeing precise results with dual overload protection (software + motor torque limiter). Operator convenience is enhanced with a remote controller for quick crosshead positioning and test control.
The system includes a high-performance computer, 24” Samsung monitor, colour laser printer, and the intuitive Hive test software, which offers automatic yield detection, multi-test capabilities, plug-and-play load cell integration, and professional reporting tools.
With reliability, usability, and compliance built into every detail, the DTU-M-50 kN delivers the performance modern laboratories expect from a universal testing machine.
