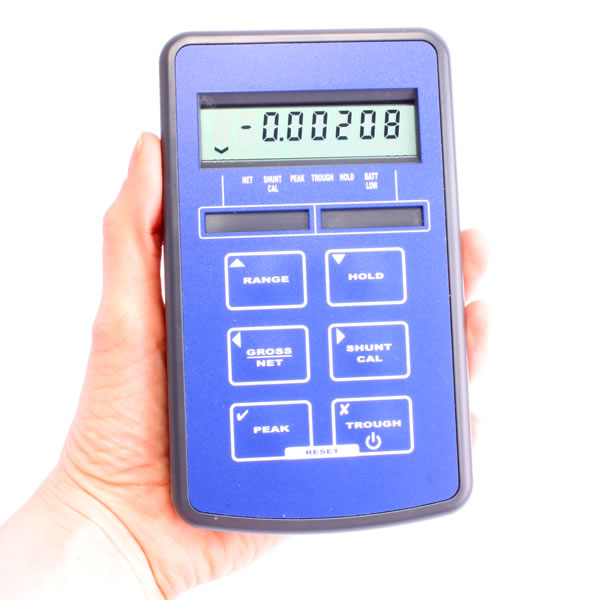

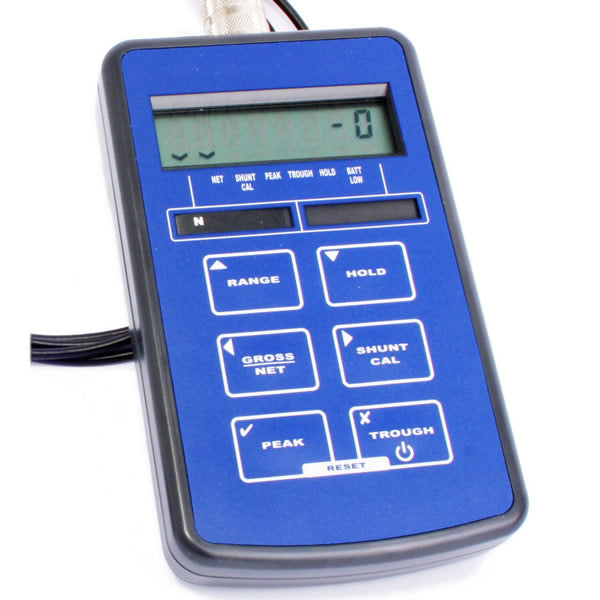

The TR150 handheld load cell indicator from Applied Measurements is a rugged, high-resolution portable display designed for precise measurement and monitoring of load cells and strain gauge–based transducers in demanding industrial environments. Engineered for reliability and ease of use, the TR150 features a clear 7-digit LCD display (±9,999,999) that provides excellent readability for applications ranging from routine force measurement to high-accuracy reference testing. Its compact, IP65-rated enclosure ensures dependable performance in dusty or harsh on-site conditions, making it an ideal solution for field service, maintenance, calibration, and production environments.
Built for flexibility, the TR150 offers dual-range capability, allowing calibration in two separate engineering units—such as Newtons and kilograms—or enabling connection to two individual load cells or strain gauge sensors using a single device. Advanced measurement functions including peak and trough capture, selectable display update rates up to 25Hz, display hold/freeze, and shunt calibration provide users with the control and precision required for accurate diagnostics and verification. An optional RS232 serial data output further enhances usability by enabling straightforward data capture and integration with external systems.
Designed with portability in mind, the TR150 operates from two standard AA batteries, delivering up to 450 hours of continuous use in low-power mode with a 350Ω bridge connected. Simple six-button configuration ensures fast setup without complex programming, while stable bridge excitation, excellent accuracy, and minimal thermal drift support consistent, repeatable measurements. Whether used for general industrial weighing, structural testing, or calibration tasks, the TR150 provides a dependable, easy-to-use handheld solution for professional load measurement applications.
Key Features
-
High-visibility 7-digit LCD display for precise readings
-
Dual-range calibration or dual sensor capability
-
Peak, trough, hold, and shunt calibration functions
-
Selectable update rates up to 25Hz
-
IP65-rated enclosure for industrial environments
-
Long battery life using standard AA batteries
-
Optional RS232 serial communication for data logging
