Accurate Measurement of Forming, Drying Screen and Press Felt Tension
The Tensiometer is a robust, portable measuring instrument designed to determine the operating tension of forming screens, drying screens, and press felts used in paper manufacturing processes.
Engineered for reliable performance in demanding production environments, the Tensiometer enables fast and accurate tension measurements on both running and stationary machine fabrics. It is an essential tool for monitoring fabric condition, identifying tension variations, and ensuring optimal machine performance.

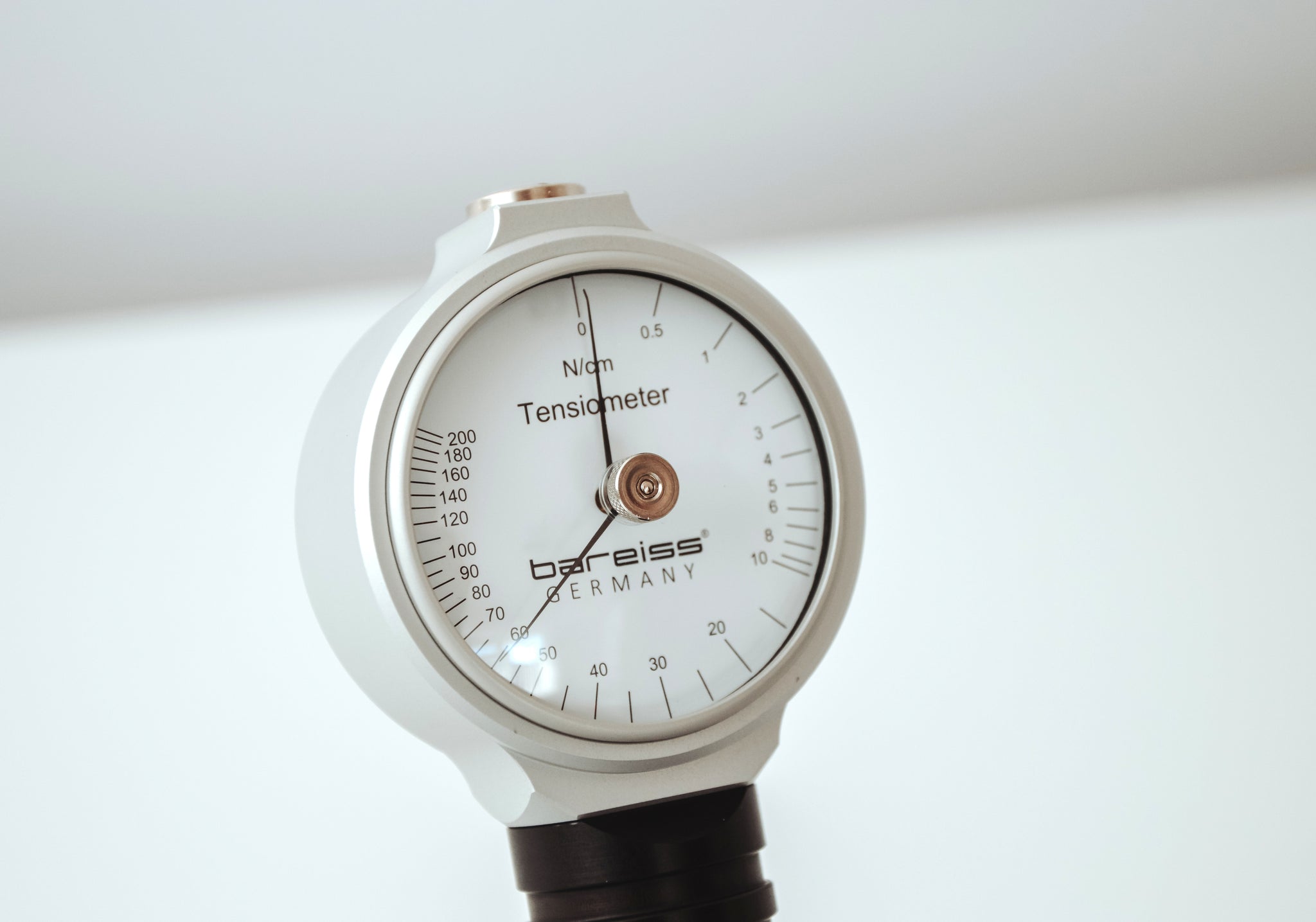

Measuring Method
The Tensiometer measures fabric tension in:
- N/cm (Newton per centimetre)
- PLI (Pounds per linear inch)
Applications
The Tensiometer is designed for measuring the operating tension of:
- Forming screens
- Drying screens
- Press felts
- Paper machine fabrics
Measurements can be performed at any accessible point on both operating and stationary screens, making the instrument ideal for routine maintenance, installation checks, and production monitoring.
Product Overview
The Tensiometer provides reliable tension measurements for paper machine fabrics throughout their service life. By monitoring screen and felt tension during operation and after fabric replacement, operators can quickly identify changes that may affect machine efficiency, product quality, or fabric performance.
The instrument is particularly valuable during the start-up phase following fabric installation, helping confirm correct tension levels and detect uneven tension distribution before production issues occur.
Its rugged mechanical design allows the Tensiometer to withstand the challenging conditions commonly found in production environments, while maintaining accurate and repeatable measurement performance.
Key Features
Portable Handheld Design
The compact handheld design allows the Tensiometer to be easily transported between production areas.

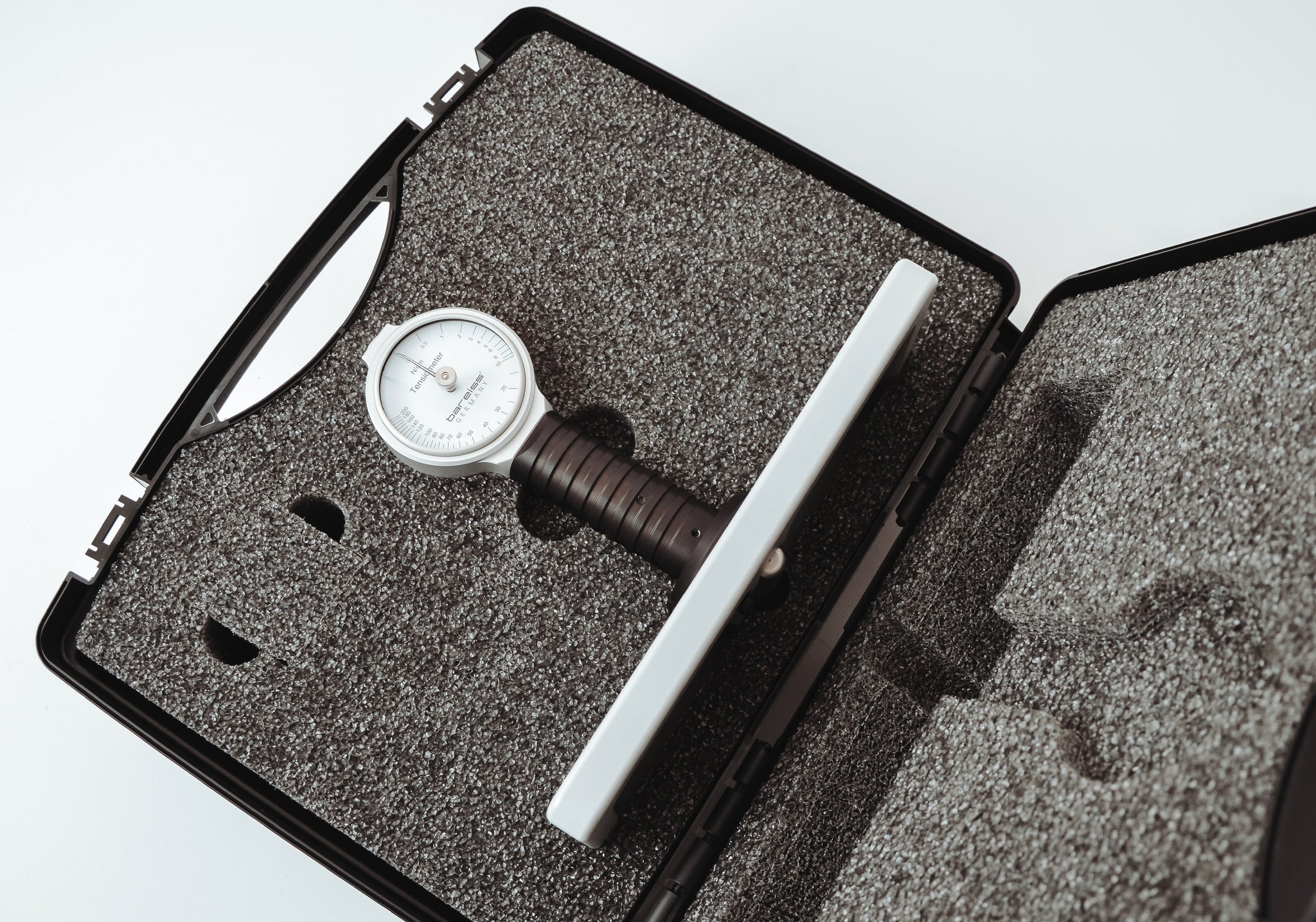

Supplied with a protective carrying case, the instrument provides convenient on-site tension measurement wherever it is required.
Robust Construction for Industrial Environments
Designed for use in demanding manufacturing conditions, the Tensiometer features a durable mechanical construction suitable for regular production use.
Its design allows easy cleaning and maintenance, helping extend service life while ensuring consistent measurement accuracy.
Maximum Value Indicator
The integrated maximum indicating pointer stores the highest measured tension value, allowing readings to be viewed after completing the measurement.
This feature is particularly useful when measurements must be taken in difficult-to-access locations or where direct viewing during testing is restricted.
Fast and Reliable Measurement
The Tensiometer provides immediate tension readings during measurement, allowing operators to quickly assess fabric conditions and make informed maintenance decisions.
Benefits
- Measures forming screen, drying screen and press felt tension
- Suitable for operating and stationary paper machines
- Measures tension in N/cm and PLI
- Fast measurement with direct reading display
- Portable handheld design
- Rugged construction for production environments
- Dust and water resistant design
- Large and accurate measuring range

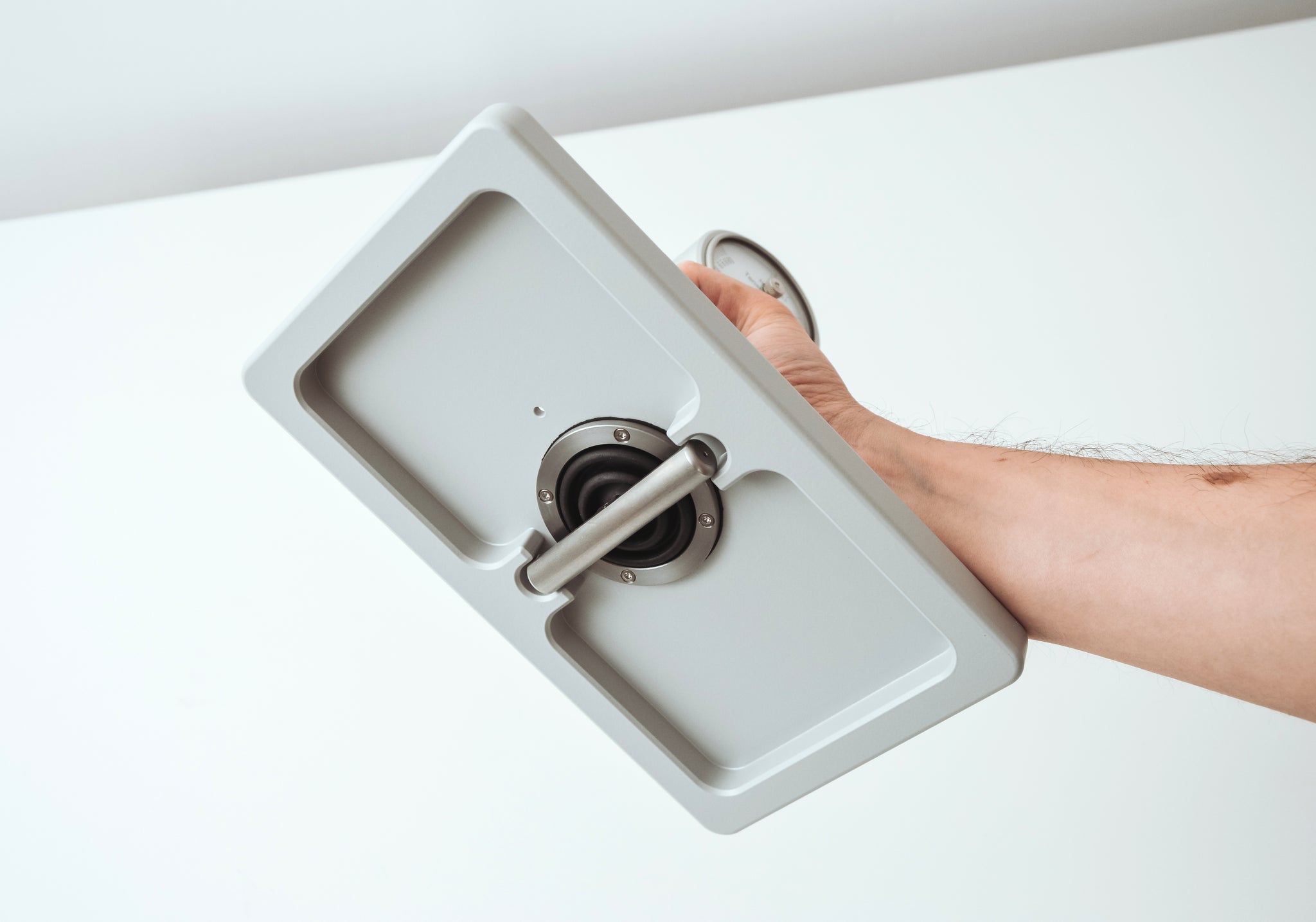

- Ergonomic handle for comfortable operation
- Maximum value pointer for capturing peak readings
- Easy cleaning and maintenance
- Ideal for routine fabric monitoring and quality control
Typical Applications
- Paper manufacturing
- Pulp and paper mills
- Paper machine maintenance
- Fabric installation verification
- Production troubleshooting
- Preventative maintenance programs
- Process optimisation
