Efficiently backfill and compact road core holes with tamper pads matched to the core diameter.
After extracting pavement cores for road condition assessment, materials testing or geotechnical investigations, the resulting holes need to be properly reinstated. Using the correct diameter tamper pad provides effective compaction of backfill material, helping councils, road authorities, contractors and testing teams restore core holes quickly and consistently.
Designed for Road Core Sampling & Reinstatement
Core sampling is widely used to assess pavement construction, material condition and road performance. Common core diameters include approximately 100mm and 150mm, leaving corresponding holes that need to be safely and correctly backfilled.
A tamper pad matched to the hole diameter helps compact the replacement material efficiently, reducing the time required for reinstatement while supporting good pavement maintenance practices.

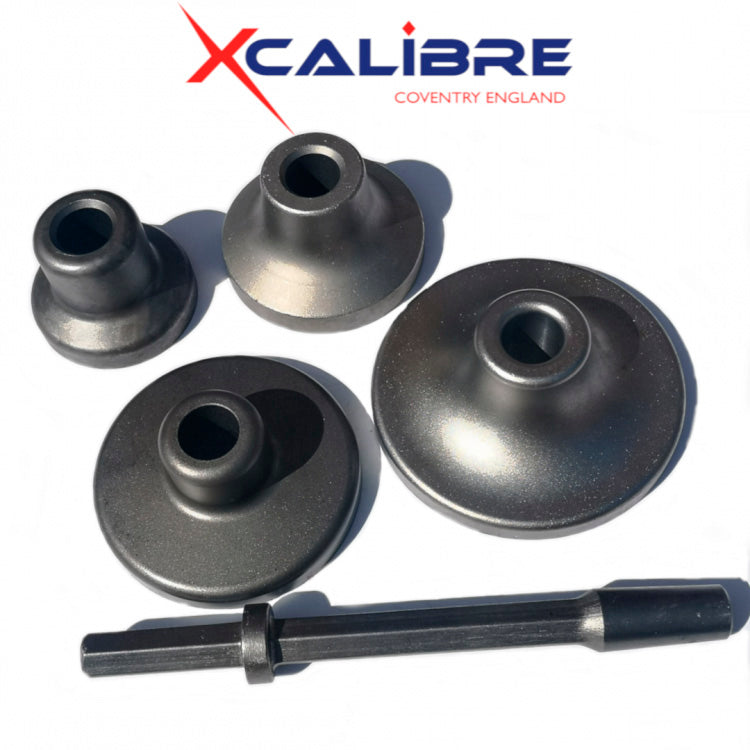

Tamper Pad Sizes
Our range includes tamper pads in the following diameters:
- 100mm (4")
- 125mm (5")
- 150mm (6")
- 175mm (7")
- 200mm (8")

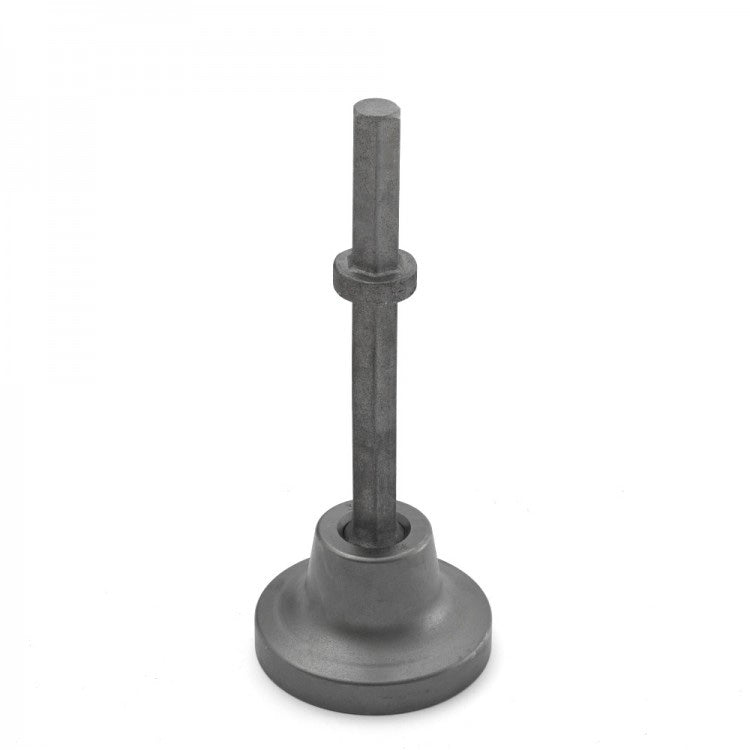

Also commonly referred to as rammer pads or elephant's foot tamper pads, these attachments are designed for applications where controlled compaction is required within drilled or cored holes.

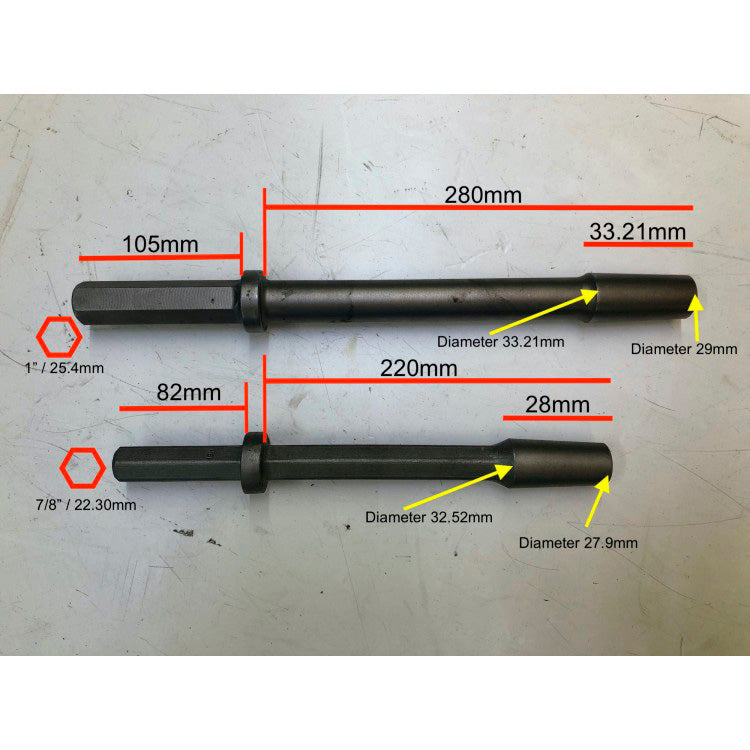

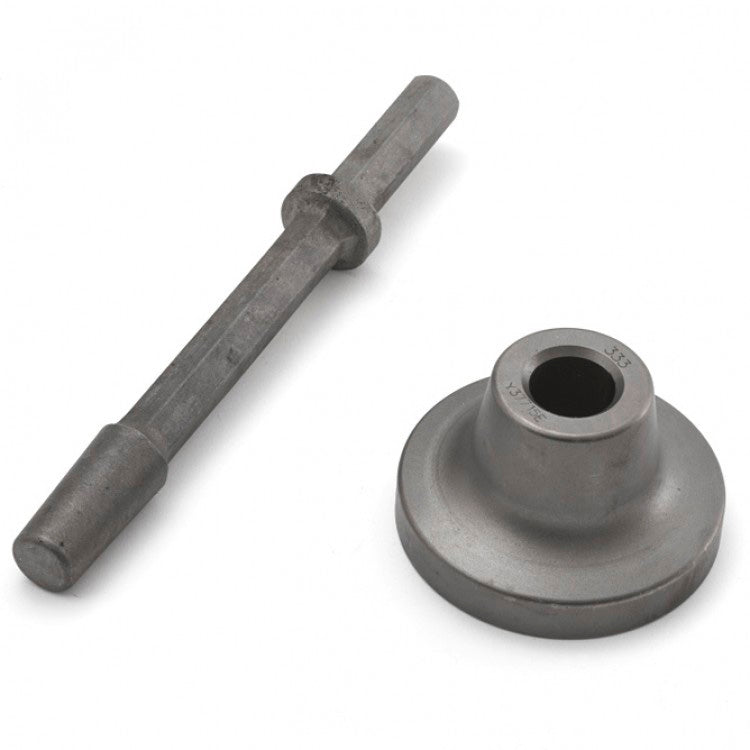

Tamper Stems
Tamper stems are available with different hexagon sizes to suit compatible breakers and tampers:
- 22mm hex × 82.5mm — suitable for Atlas Copco LH11
- 25.4mm hex × 108mm — not suitable for LH11
- 32mm hex × 235mm — for compatible equipment; not suitable for LH11 or the tamper pads listed above
Ideal Applications
Suitable for:
- Road core hole backfilling
- Pavement testing and reinstatement
- Geotechnical investigations
- Road maintenance and repair
- Council and local government roadworks
- Civil engineering applications
- Concrete and asphalt coring
- Drilling hole reinstatement
- Ground care and material compaction
A Simple Solution for Better Core Hole Reinstatement
Matching the tamper pad diameter to the core hole provides a practical way to improve backfilling efficiency and compaction. With dedicated 100mm and 150mm tamper pads for common road coring applications, this range provides a useful solution for pavement testing and road maintenance teams.
Contact Hylec Controls for advice on selecting the correct tamper pad and stem for your application.
