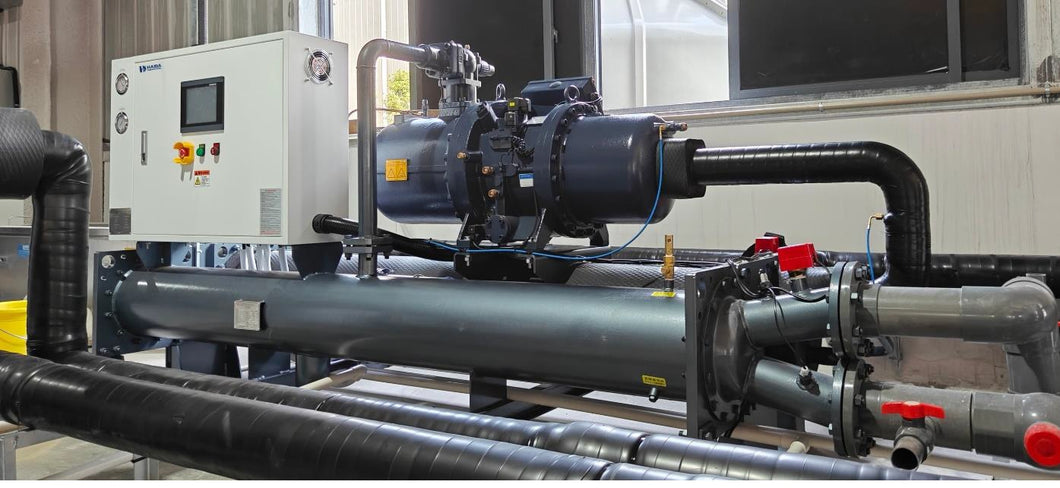

The HD-E901 Seawater Water-Cooling Chiller is a high-capacity industrial cooling solution specifically engineered for marine and coastal environments. Custom-made for reliability and performance, this unit is designed to withstand the challenges of seawater applications, delivering stable, long-term operation with exceptional thermal efficiency. Its robust construction features titanium heat-exchange components, a high-performance screw compressor, and an intelligent temperature control system, making it ideal for vessels or coastal installations requiring precise seawater cooling.
Customizable Design: The HD-E901 is fully customisable to suit the unique requirements of your vessel or application, ensuring optimal performance in any environmental conditions.
Key Features
-
High-Capacity Cooling: 416 kW (357,760 kcal/h) to efficiently manage demanding thermal loads.
-
Durable Construction: Titanium heat exchangers and stainless steel water tank for long-lasting corrosion resistance in seawater.
-
Advanced Compressor Technology: Semi-enclosed asymmetric screw compressor with Star-Delta starting for reliable operation.
-
Intelligent Control: Fully integrated temperature control system with English LCD interface.
-
Safety & Protection: Includes high/low pressure protection, anti-icing safeguards, overload protection, phase and voltage protection, water-flow monitoring, and additional interlocks for safe operation.
Technical Specifications
Cooling Performance
-
Cooling Capacity: 357,760 kcal/h (416 kW)
-
Total Refrigeration Power Consumption: 93.5 kW
-
Running Current: 161.8 A
-
Power Supply: 3-phase, 380 V, 50 Hz
Compressor
-
Type: Advanced Asymmetric Semi-Enclosed Screw Compressor
-
Starting Method: Star-Delta
-
Quantity: 1 unit
Refrigerant System
-
Refrigerant Type: R22
-
Charge: 69 kg
-
Expansion Valve: Externally Balanced Thermal Expansion Valve
Condenser
-
Type: High-Efficiency Shell-and-Tube
-
Cooling Water Flow: 88 m³/h
-
Materials: Titanium tubing with carbon steel shell
-
Pipe Size: DN125
-
Cooling Medium: Seawater
Evaporator (x1)
-
Type: High-Efficiency Shell-and-Tube
-
Flow Rate: 67 m³/h
-
Temperature Control: Water Outlet Temperature Sensor
-
Medium: Seawater
-
Materials: Titanium tube with PP plastic casing
-
Pipe Size: DN125
Fan Assembly
-
Type: Outer Rotor Axial-Flow Fan
-
Input Power: 3.8 kW
-
Air Volume: 58,400 m³/h
Dry Filter
-
Type: Horizontal
-
Material: Carbon Steel
-
Filter Media: Alumina Molecular Sieve
Water Tank
-
Capacity: 700 L
-
Material: SUS304 Stainless Steel
Control System
-
Fully Intelligent Temperature Control System
-
Interface: English LCD Display
Safety & Protection Features
-
High/low pressure protection
-
Double anti-icing protection
-
Overload protection
-
Under-phase / reverse-phase / under-voltage / over-voltage protection
-
Water-flow protection
-
Additional integrated safety interlocks
Dimensions & Weight
-
Unit Dimensions (L × W × H): 3250 × 1130 × 1490 mm
-
Machine Weight: 2390 kg
Notes & Operational Guidance
-
Nominal conditions: evaporating temperature 2°C, condensing temperature 37°C.
-
Cooling capacity, power input, and water parameters are based on nominal conditions.
-
For transitional operating conditions, increase cooling water flow by ≥10%.
-
Outlet temperature adjustable between 5°C and 35°C, with accuracy of ±2°C.
-
Power supply tolerance: voltage fluctuation ±10%, phase-to-phase voltage difference ±2%.
Tailored for Your Needs: The HD-E901 can be customised to meet the specific vessel dimensions, operational requirements, and environmental challenges of any marine or coastal application.
