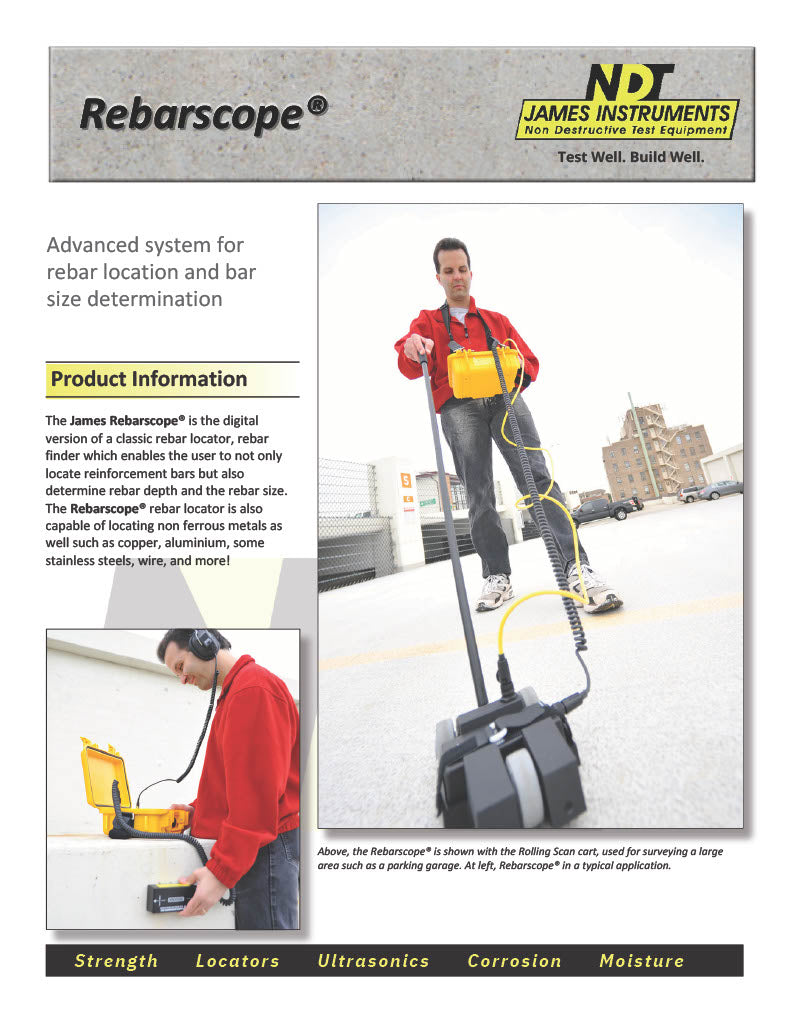

The Rebarscope® is the digital version of a classic rebar locator, rebar finder which enables the user to not only locate reinforcement bars but also determine rebar depth and the rebar size. The Rebarscope® rebar locator is also capable of locating non ferrous metals as well such as copper, aluminium, some stainless steels, wire, and more!
Features & Benefits
-

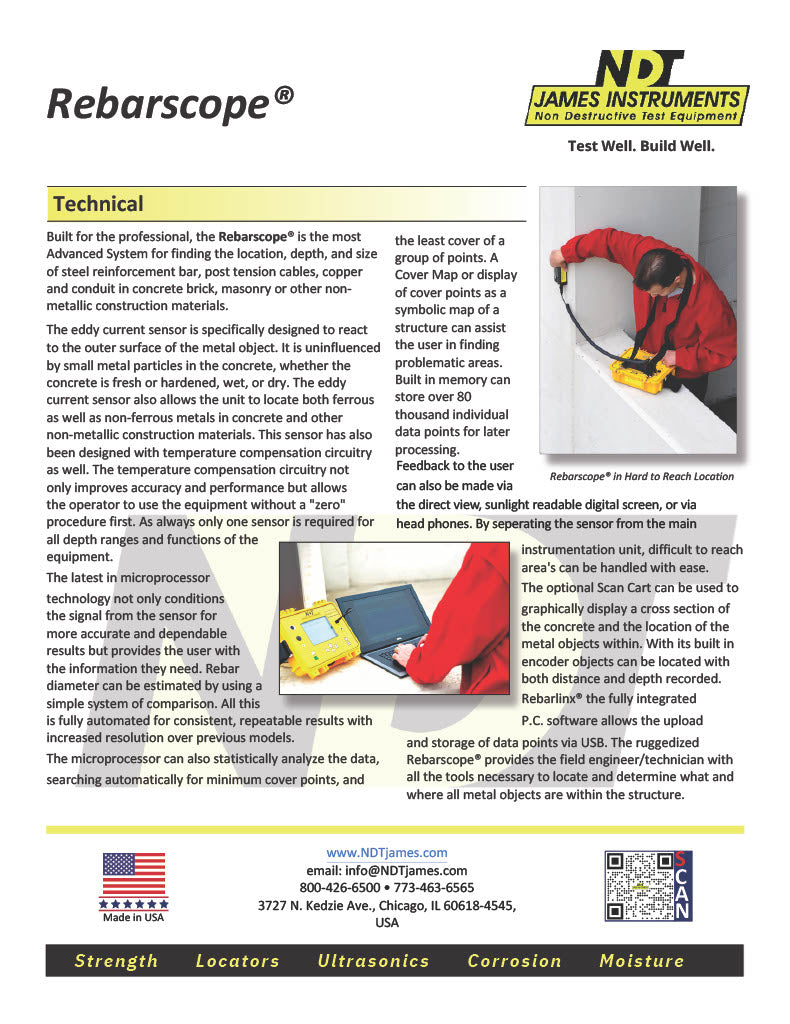

Eddy current sensor design for greater accuracy with built in temperature compensation, no need to zero the sensor.
-
Single sensor for all depth ranges.
- Separate sensor and main instrumentation unit to scan difficult to access area's.
-
Locates rebar, post tension cable, conduit,and copper pipe.
-
Rugged and splash resistant case. Daylight visible display.
-
Optional Scan Cart logs distance data as well as the location of rebar.
-
Locates up to 8" (200 mm) deep. Determines bar size up to 4.5" (115 mm) deep.
-
Conforms to ACI 318, BS 1881 Part 204, DIN 1045, CP 110, EC 2, SIA< 162, DGZfP B2.

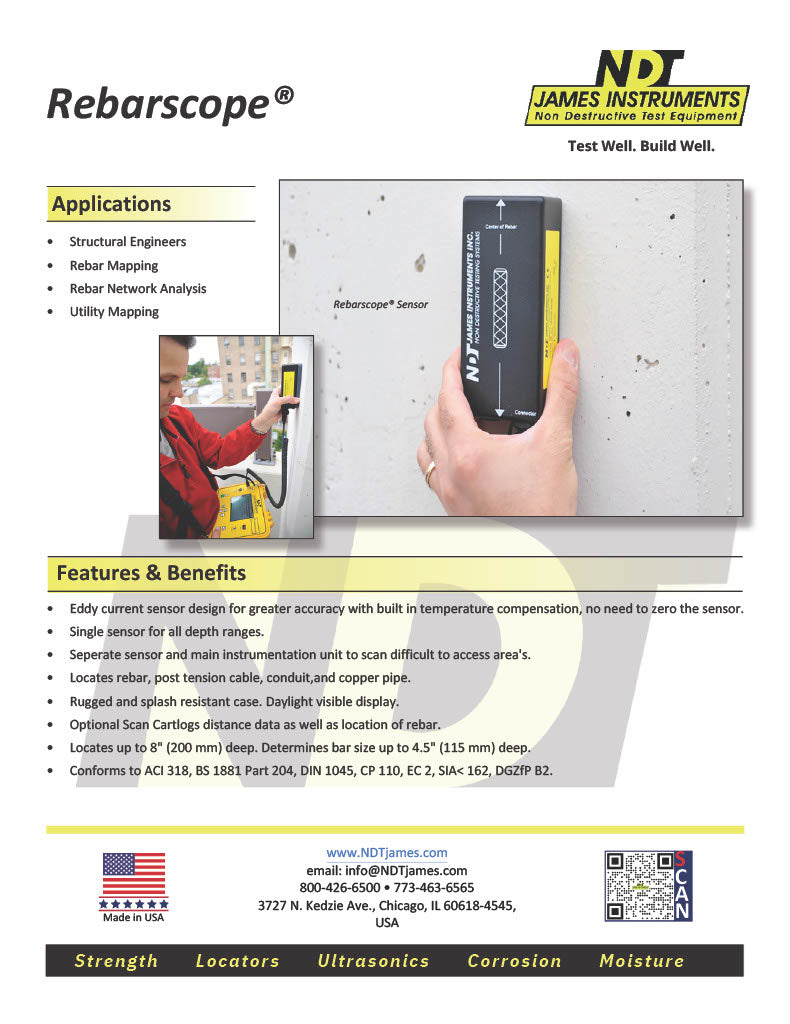

Applications
-
Structural Engineers
-
Rebar Mapping
-
Rebar Network Analysis
-
Utility Mapping

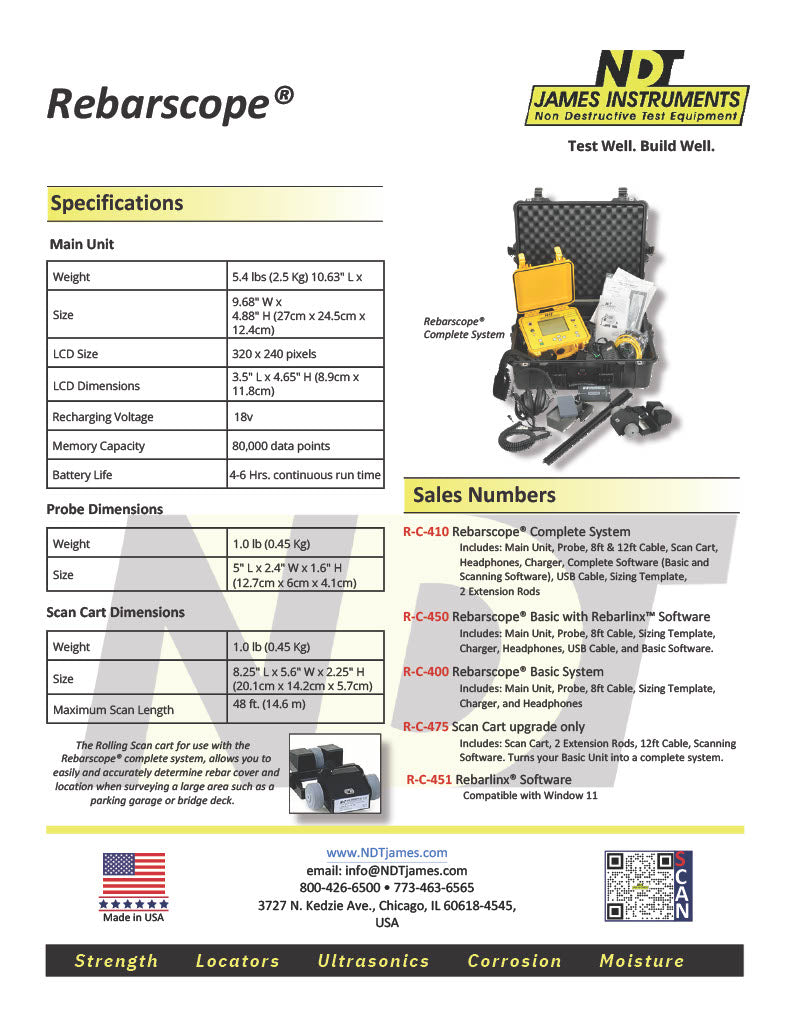

Technical Specifications
Main Unit
- Weight: 5.4 lbs (2.5 kg)
- Dimensions: 10.63" L × 9.68" W × 4.88" H (27 × 24.5 × 12.4 cm)
- Display: 320 × 240 pixel LCD, 3.5" × 4.65" (8.9 × 11.8 cm)
- Power: 18V rechargeable, 4-6 hours continuous runtime
- Memory: 80,000 data point capacity
Sensor Probe
- Weight: 1 lb (0.45 kg)
- Dimensions: 5" L × 2.4" W × 1.6" H (12.7 × 6 × 4.1 cm)
Optional Scan Cart
- Weight: 1 lb (0.45 kg)
- Dimensions: 8.25" L × 5.6" W × 2.25" H (20.1 × 14.2 × 5.7 cm)
- Maximum Scan Length: 48 ft (14.6 m)
Standards Compliance
Meets requirements for: ACI 318, BS 1881 Part 204, DIN 1045, CP 110, EC 2, SIA 162, DGZfP B2
Why Choose Rebarscope®?
The Rebarscope® combines decades of proven rebar location technology with modern digital precision. Its advanced microprocessor technology delivers consistent, repeatable results while the ruggedised design ensures reliable performance in demanding field conditions. Whether you're conducting structural assessments, mapping reinforcement networks, or locating utilities, the Rebarscope® provides the accuracy and reliability professionals demand.
-
R-C-400 BASIC UNIT includes the following: Main Unit, Probe, 8 ft Cable, Sizing Template, Charger, and Headphones
-
R-C-450 BASIC UNIT WITH SOFTWARE includes the following: Main Unit, Probe, 8 ft Cable, Sizing Template, Charger, Headphones, USB Cable, and Basic Software.
-
R-C-475 SCAN CART UPGRADE includes the following: Scan Cart, 2 Extension Rods, 12 ft Cable, Scanning Software. Turns your Basic Unit into a complete system (R-C-410).
-
R-C-410 COMPLETE SYSTEM includes the following: Main Unit, Probe, 8 ft & 12 ft Cable, Scan Cart, Headphones, Charger, Complete Software (Basic and Scanning Software), USB Cable, Sizing Template, 2 Extension Rods
