Models: LT-C0900 (4-Channel), LT-C0901 (8-Channel), LT-C0903 (16-Channel)
Standards: ASTM C1202, ASTM C1760
Accurate Chloride Ion Permeability Testing for Concrete Durability Assessment

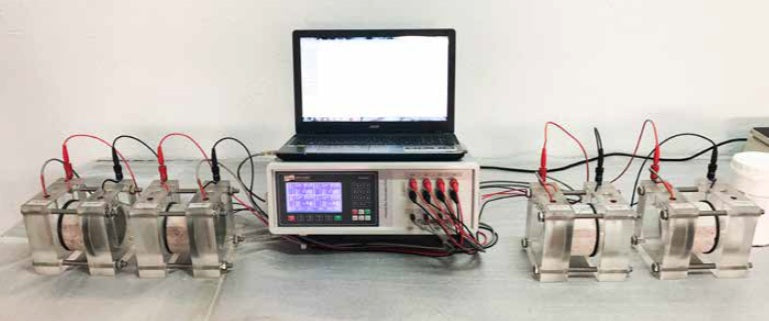

The Rapid Chloride Permeability Tester (RCPT) is designed to evaluate the resistance of concrete to chloride ion penetration, a critical indicator of long-term durability and reinforcement corrosion risk. Available in 4-channel, 8-channel and 16-channel configurations, these advanced testing systems provide precise, reliable and efficient testing in accordance with ASTM C1202 and ASTM C1760.
Featuring independent test channels, real-time monitoring, integrated temperature measurement and comprehensive data storage capabilities, the RCPT delivers accurate and repeatable results for research laboratories, quality control facilities, universities and construction material testing laboratories.
Key Features
- Available in 4, 8 or 16 independent test channel configurations.
- Adjustable test voltage from 5 to 60 V.
- High measurement accuracy of ±0.1 V and ±1 mA.
- Large graphic LCD display with real-time monitoring.
- Displays current, voltage, elapsed time, temperature and load values for each channel.
- Independent start and stop control for every test channel.
- Temperature monitoring with dedicated sensor input for each cell pair.
- Audible alarm notifications at test commencement and completion.
- Built-in data storage for recording and reviewing test results.

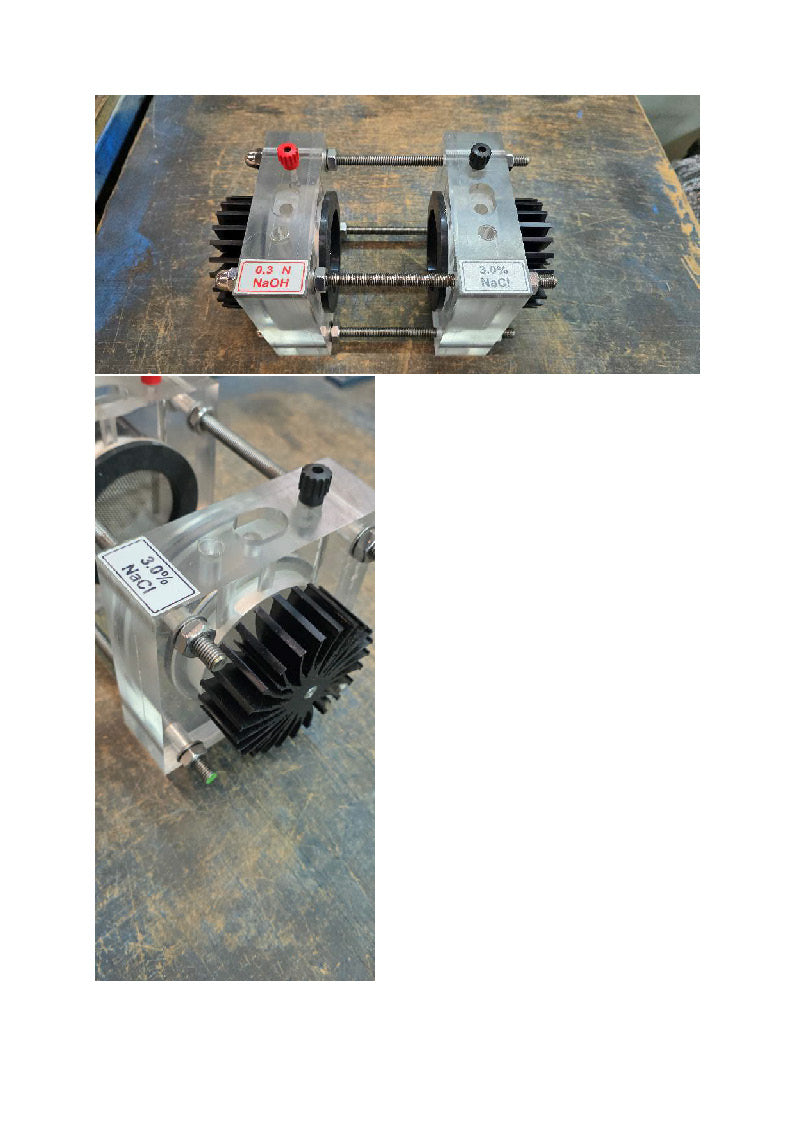

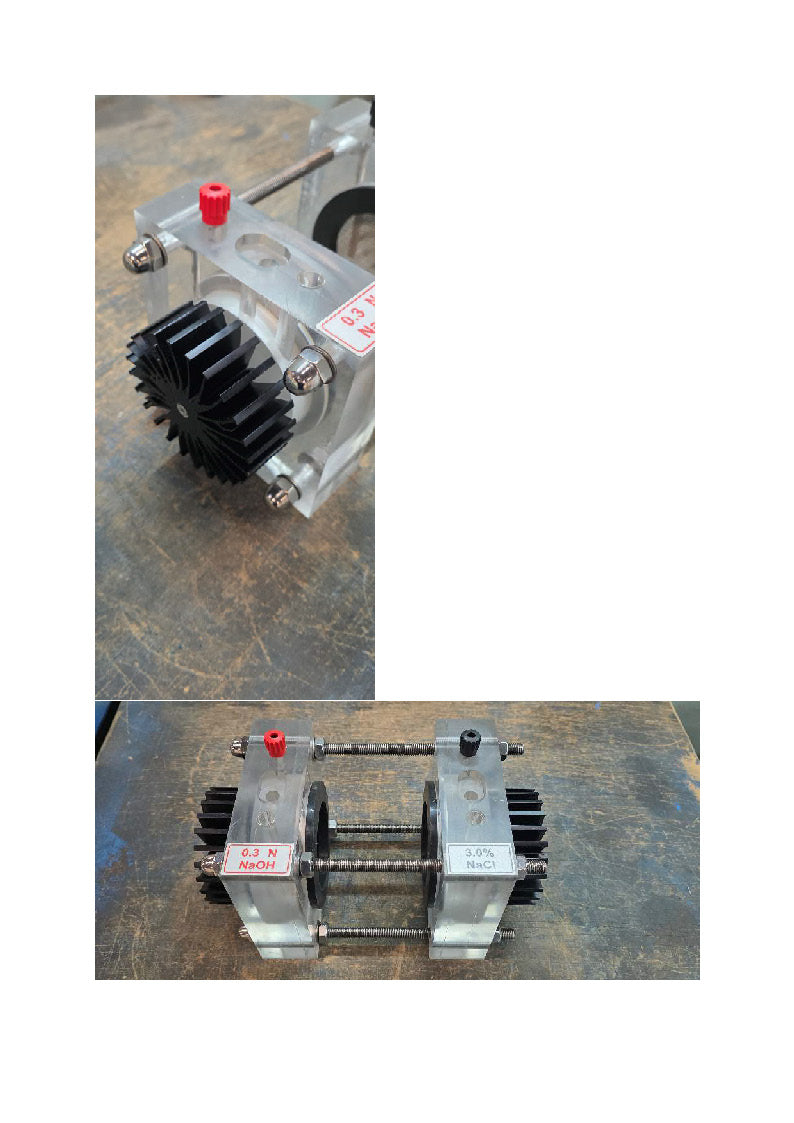

- Transparent test cells with sealing gaskets and colour-coded polarity connections.
- Cooling unit supplied with all models.
Supplied Accessories
- Transparent test cells
- V(-) supply cables
- V(+) supply cables
- Temperature sensor connection cables
- Device power supply cable
- Temperature sensors for each cell pair
- Sample connection apparatus
- Sealing gaskets
Models Available
LT-C0900 – 4-Channel Rapid Chloride Permeability Tester
The LT-C0900 is ideal for laboratories requiring routine chloride permeability testing with four independent testing positions. Supplied complete with four test cells and cooling unit.
Configuration:
- 4 independent test channels
- 4 transparent test cells
- Cooling unit included
LT-C0901 – 8-Channel Rapid Chloride Permeability Tester
Designed for higher testing throughput, the LT-C0901 enables simultaneous testing of up to eight concrete specimens, improving laboratory productivity and efficiency.
Configuration:

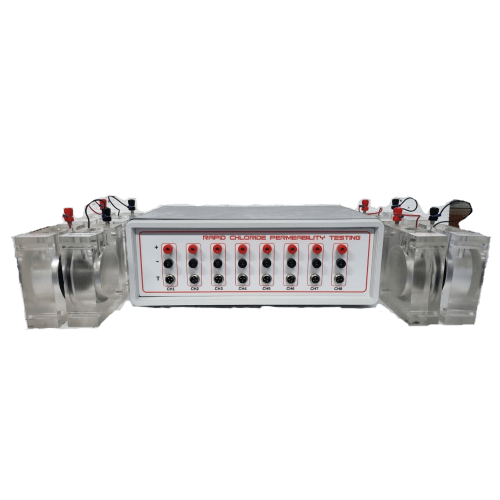

- 8 independent test channels
- 8 transparent test cells
- Cooling unit included
LT-C0903 – 16-Channel Rapid Chloride Permeability Tester
The LT-C0903 provides maximum testing capacity for busy laboratories and research facilities, allowing up to sixteen specimens to be tested concurrently.
Configuration:
- 16 independent test channels
- 16 transparent test cells
- Cooling unit included
Applications
- Concrete durability testing
- Chloride ion permeability assessment
- Research and development laboratories
- Construction materials testing
- Quality assurance and quality control programs
- University and civil engineering laboratories
Compliance
- ASTM C1202 – Electrical Indication of Concrete's Ability to Resist Chloride Ion Penetration
- ASTM C1760 – Bulk Electrical Conductivity of Hardened Concrete
