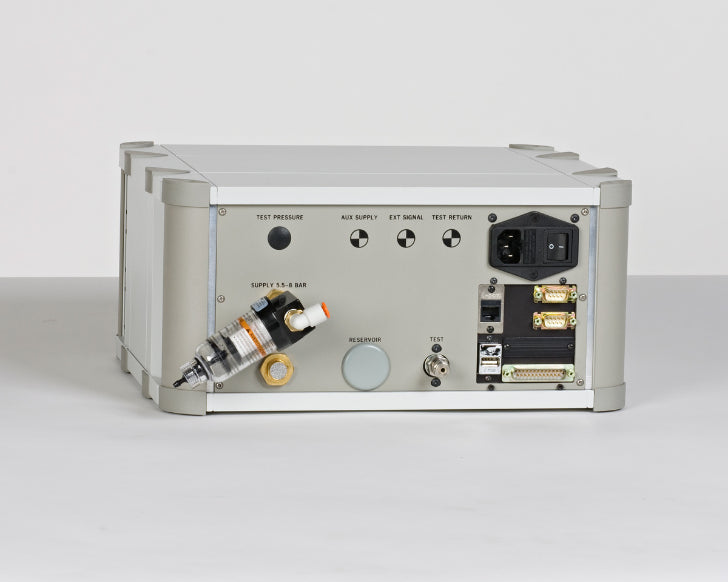

M1045e Series
The M1045e Series is a compact, high-resolution pressure change leak test instrument designed for accurate testing across a wide range of part volumes. With a programmable pressure regulator and 24-bit precision instrumentation, it provides reliable, repeatable leak detection for production and quality control applications.
This instrument combines modern connectivity with flexible operation, featuring a touch-screen control panel, dual USB ports, Ethernet, and an embedded web interface, making it suitable for both stand-alone operation and PLC or PC integration.
Test Technology & Operation
The leak test pressure transducer connects directly to the test component. Once the circuit is filled with air and isolated from the supply, any leak causes a pressure change relative to atmospheric pressure. The transducer output provides a direct measurement of the pressure change, which is proportional to the leak rate.
This method ensures fast, accurate, and highly repeatable results, ideal for critical components and high-volume testing.
Key Specifications
-
Programmable pressure range: 0 – 150 psig
-
Transducer repeatability: 0.05% F.S.D.
-
Transducer sensitivity: < 10⁻⁵ psi (STD)
-
A/D conversion: 24-bit, 100 conversions/sec
-
Timer resolution: 0.01 sec
-
Connectivity: Touch-screen control panel, dual USB ports, Ethernet, embedded web page
-
Calibration: NIST traceable to < 5% R&R
-
Test programs: Up to 99 selectable programs
-
Integration: Stand-alone or PLC/PC interface
-
Additional features: Advanced data storage, statistics, and communications
