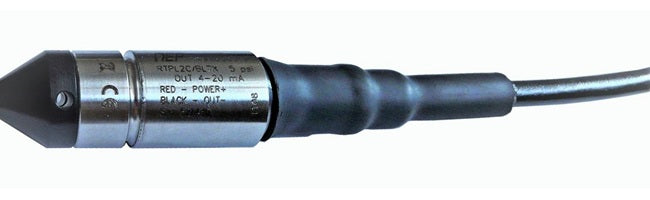

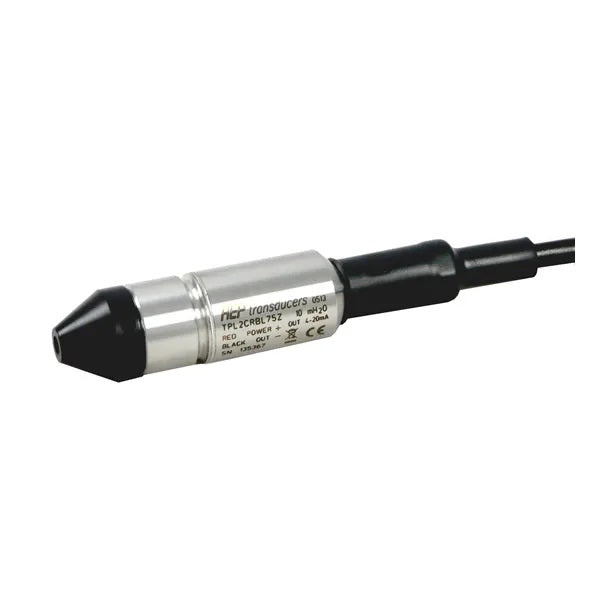

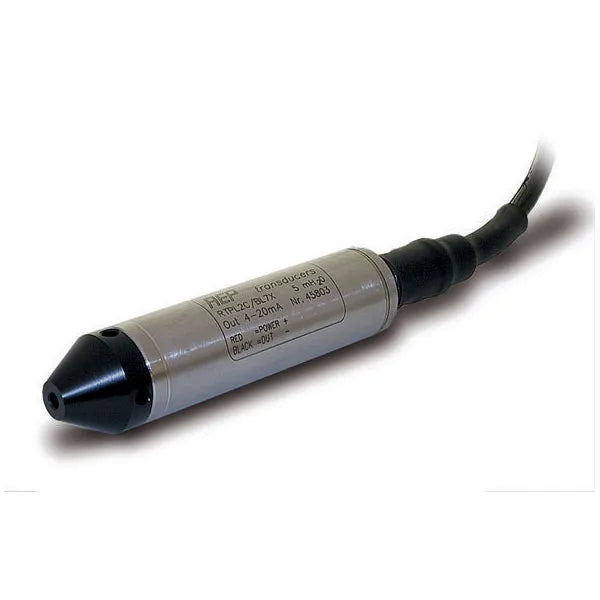

TPL2C Immersion Pressure Transmitter
The TPL2C Series pressure transmitters are designed for permanent immersion in liquids, providing accurate and reliable level measurements in a wide range of industrial and environmental applications.

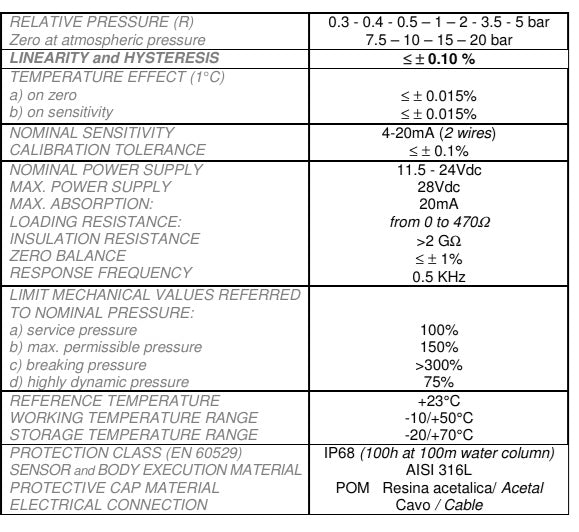

Key Features
-
Pressure Range: 300 mbar (3 mH₂O) to 20 bar (200 mH₂O) nominal relative pressure
-
Output Signal: Amplified 4–20 mA, 2-wire
-
Accuracy: Linearity and hysteresis within ±0.10%
-
Construction: All wetted parts are made from AISI 316L stainless steel, ensuring excellent corrosion resistance
-
Protection Rating: IP68 – suitable for permanent immersion
-
Process Connection: 1/4″ GAS female
-
Cable: Durable polyurethane cable, available in custom lengths
-
Power Supply: 12 to 24 VDC
Description
The TPL2C pressure transducers are purpose-built for liquid level measurement in tanks, reservoirs, wells, and other applications requiring continuous submersion. Once installed at the desired depth, these transmitters accurately detect hydrostatic pressure to determine fluid level — making them ideal for monitoring, control, and regulation systems.
Their robust stainless steel construction and IP68 protection ensure long-term durability even in challenging environments, while the amplified 4–20 mA output provides stable and interference-free signal transmission over long distances.
Typical Applications
-
Water and wastewater management
-
Industrial process control
-
Environmental monitoring
-
Tanks, wells, and reservoirs level measurement
