Reliable, Consistent Sample Preparation for XRF Analysis
The LT-A9750 Manual Pellet Press and LT-A9760 Digital Pellet Press are compact, robust laboratory systems designed to prepare high-quality, stable pellets for XRF and spectral analysis. They provide controlled and consistent sample compaction, making them well suited to mining and ore processing, metallurgy, geology, construction materials, ceramics, plastics, environmental testing, recycling, chemistry and glass applications.
With pressing capacities of up to 250 kN, the Pellet Presses deliver the high, consistent pressure required to produce strong, uniform pellets for dependable analytical results. A precision double-flow hydraulic pump provides controlled loading, while the robust aluminium frame and four-sided Plexiglass safety enclosure provide a secure and practical laboratory setup.
Choose the Pellet Press for Your Application

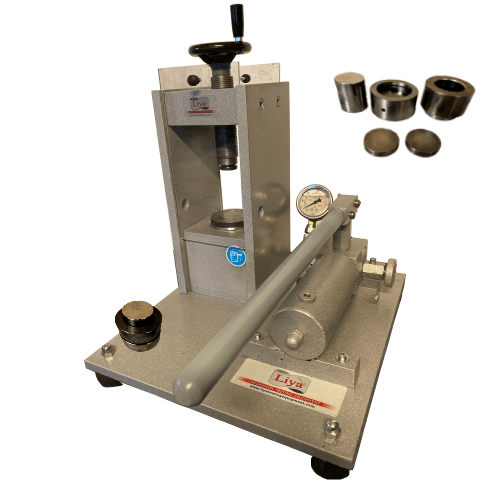

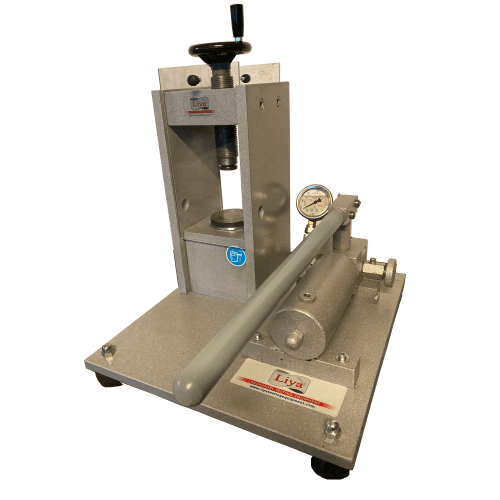

LT-A9750 Manual Pellet Press
The LT-A9750 offers a simple, reliable and cost-effective solution for routine sample preparation. The applied pressure is clearly displayed on an easy-to-read analogue manometer, allowing operators to monitor the pressing force throughout the pellet preparation process.
LT-A9760 Digital Pellet Press
The LT-A9760 provides enhanced measurement precision and convenient digital operation. A load cell accurately measures the applied force, with values displayed on an integrated LCD screen for precise, repeatable and controlled sample preparation.
Key Benefits
- Pressing capacity up to 250 kN
- Designed for XRF and spectral analysis sample preparation
- Produces strong, stable and consistent pellets
- Precise hydraulic pressure application
- Compact and robust laboratory design
- Choice of manual or digital operation
- Integrated Plexiglass safety enclosure
- Suitable for a broad range of materials and industries
- Ideal for mining, geology, metallurgy and ore-processing laboratories
Technical Specifications
| Product Code | Product Name | Capacity | External Dimensions | Weight | Power Supply |
|---|---|---|---|---|---|
| LT-A9750 | Manual Pellet Press | 15–25 ton | 40 × 25 × 55 cm | 22 kg | — |
| LT-A9760 | Digital Pellet Press | 15–30 ton | 75 × 40 × 120 cm | 25 kg | 220 V, 50–60 Hz, 1 ph |

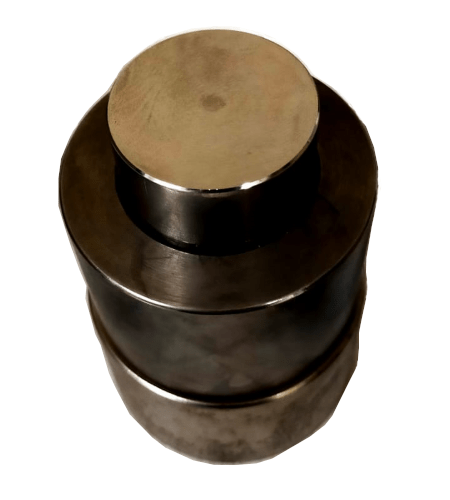

Pellet Moulds & Accessories
| Product Code | Product | Size | Weight |
| LT-A9780 | Pellet Mould | Ø32 mm | 1 kg |
| LT-A9781 | Pellet Mould | Ø35 mm | 1 kg |
| LT-A9782 | Pellet Mould | Ø40 mm | 1 kg |
| LT-A9783 | Pellet Mould | Ø51.5 mm | 1 kg |
Applications
The Pellet Press is suitable for preparing powdered samples for XRF analysis and other spectral analysis techniques across:
- Mining and ore processing
- Geology and mineral analysis
- Metallurgy
- Construction materials
- Ceramics
- Plastics
- Environmental testing
- Recycling
- Chemistry
- Glass
Improve XRF Sample Preparation
Consistent sample preparation is an important part of obtaining reliable and repeatable XRF results. The LT-A9750 and LT-A9760 Pellet Presses provide controlled compaction to help laboratories produce stable, uniform samples ready for analysis.
Contact Hylec Controls to discuss the right Pellet Press and mould configuration for your sample preparation requirements.
