Medical Tubing Set Leak Testing

$0.00
$0.00
Sold out

Fast, accurate, and reliable leak and flow testing for medical tubing sets.

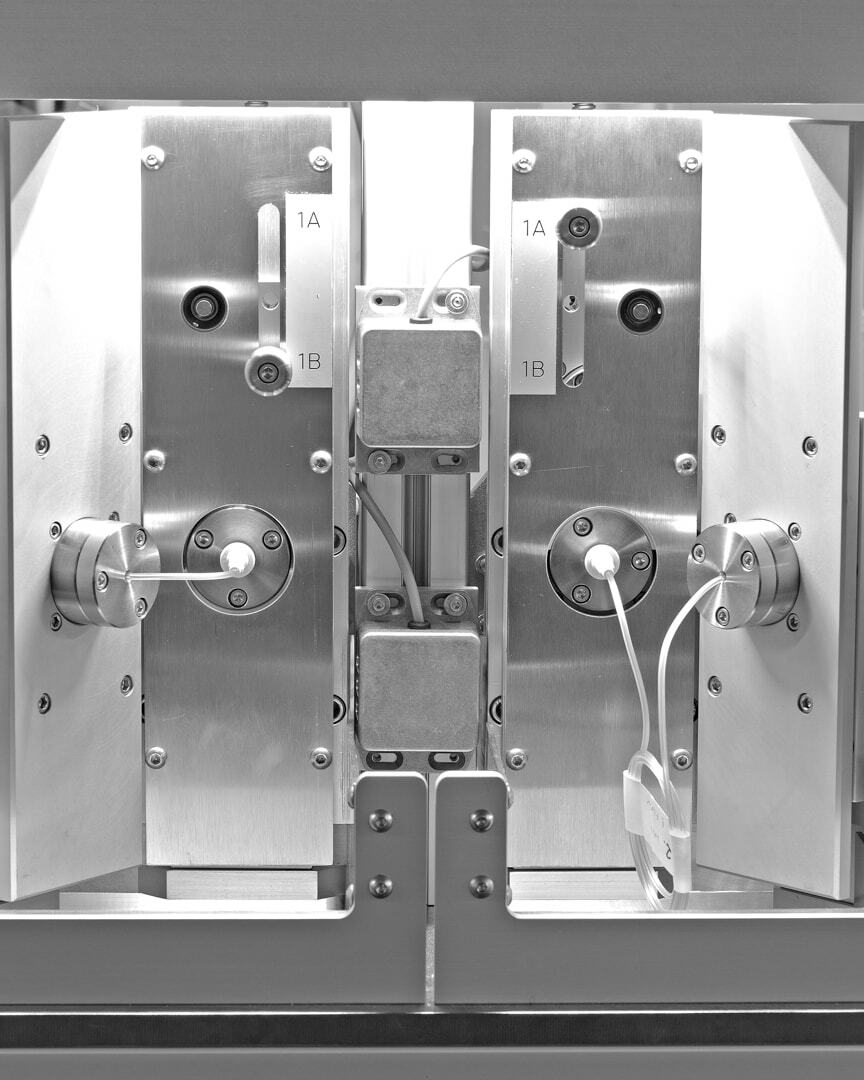

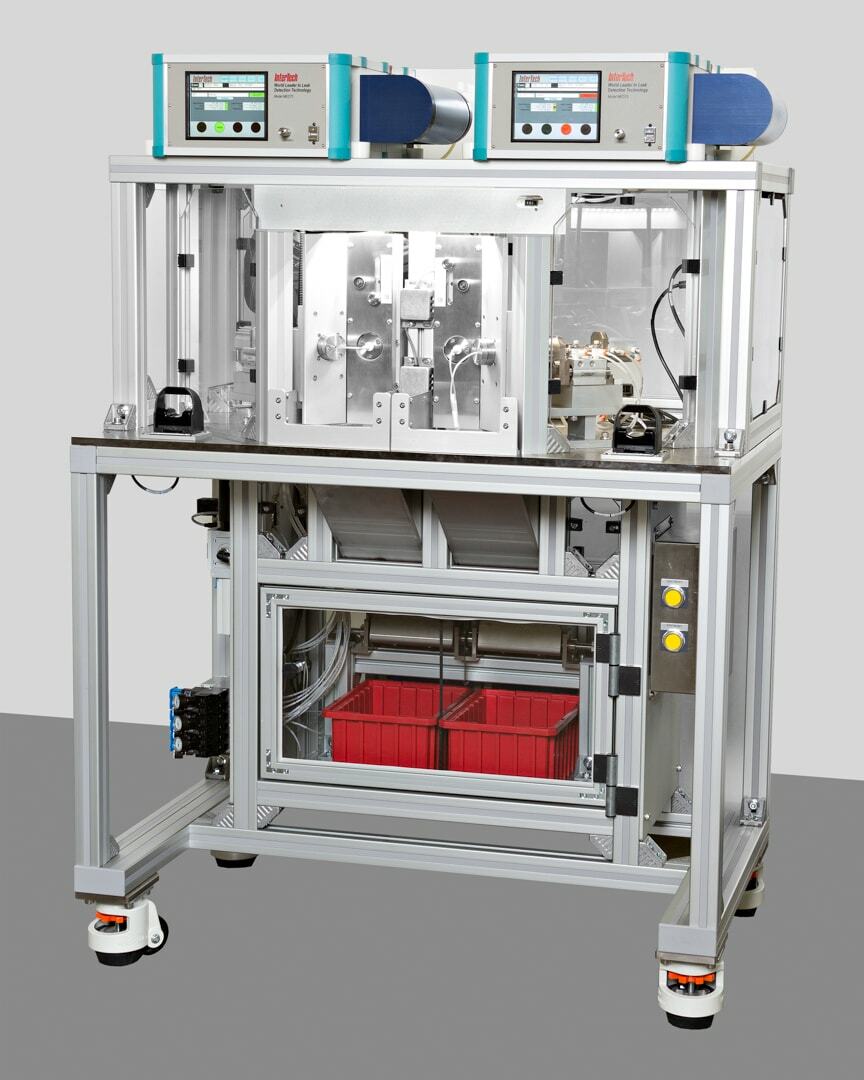

InterTech’s MED75y Dual-Function Test Instrument provides high-precision testing for a variety of medical tube sets, combining leak detection and flow measurement in a single system.

Test Capabilities

  • Leak Testing: Detects leaks down to 0.1 sccm at 9 psig (62 kPa)

  • Flow Testing: Measures flow rates from 0.4 to 20 sccm at 9 psig (62 kPa)

  • Cycle Time: 15 seconds per part for efficient throughput

  • Defect Handling: Manual loading/unloading with an interlocked reject drop box to segregate defective tube sets

Features

  • Precision Pressure Control: PID loop maintains test pressure within ±1% across 5–15 psig (34–103 kPa)

  • Versatile Testing: Supports three different tube set configurations with the same instrument

  • Data Integration: Test results transmitted via Ethernet for seamless QA system integration

  • ISO 13485 Compliant: Gauge R&R <20% ensures reliable process validation

InterTech’s MED75y Medical Tubing Set Leak Tester delivers deterministic, traceable testing—ensuring product safety, compliance, and consistent quality across all tubing assemblies.
