Medical Fluid Bag Leak Testing

$0.00
$0.00
Sold out



Medical Fluid Bag Leak Testing

Fast, accurate leak testing for IV and large-volume medical fluid bags.

InterTech’s MED75y Mass Flow Leak Detector ensures reliable integrity testing of medical fluid bags, from standard IV bags to large-volume chloride or liner bags. Our systems combine speed, precision, and full traceability to meet stringent medical and regulatory standards.

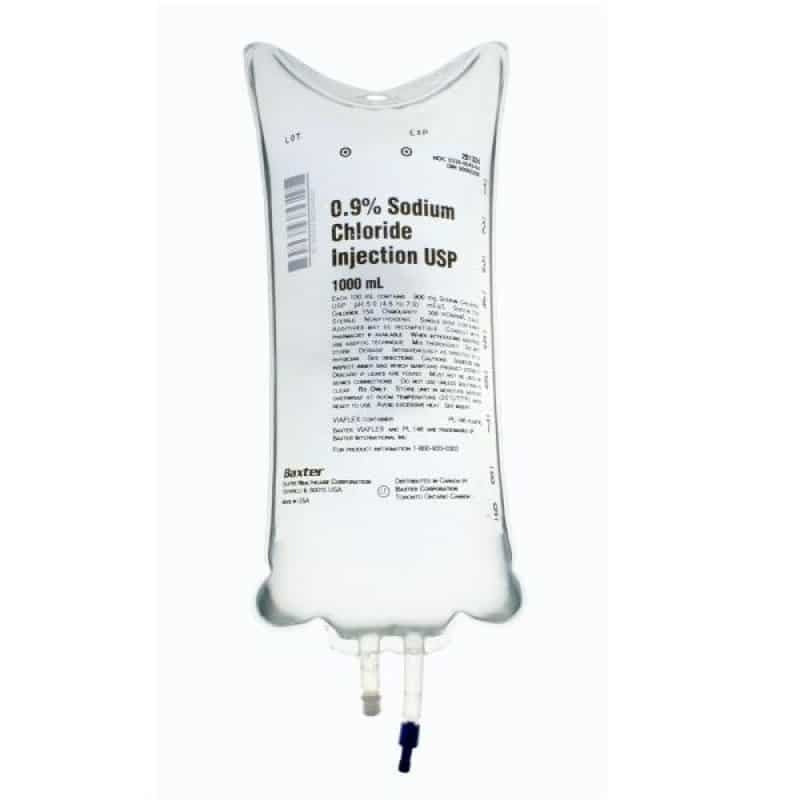

IV Fluid Bag Testing

  • Leak limit: 0.16 sccm at 10 psig

  • Test time: under 20 seconds per bag

  • Features:

    • MicroScale leak test sensor technology for high accuracy

    • Dual pressure regulators for fast prefill and fill cycles

    • Vacuum evacuation for safe bag deflation

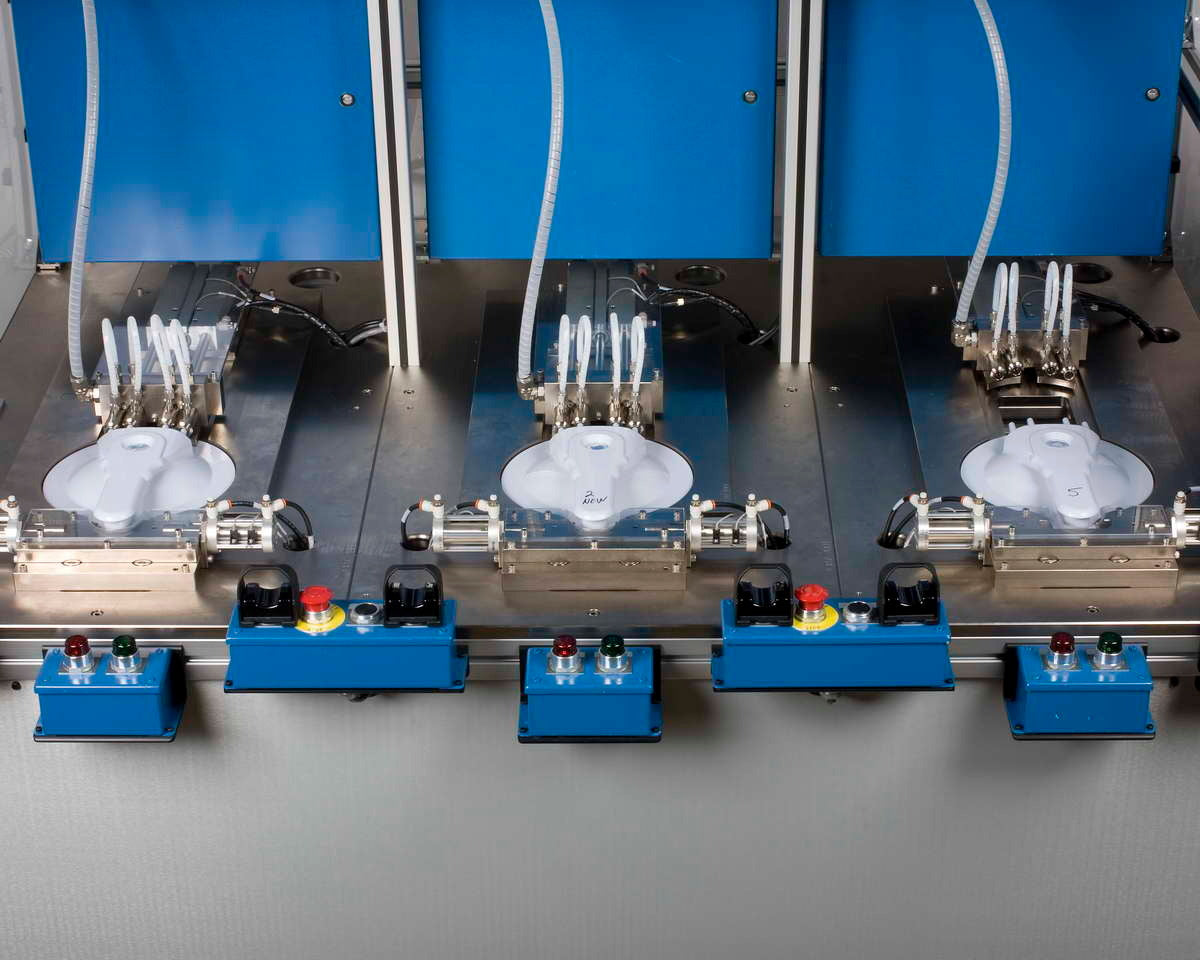

Large-Volume Medical Bag Testing (up to 20 Liters)

  • Leak limit: 8.5 sccm at 6 psig

  • Cycle rate: 120 bags per hour (three independent stations at 40 bags/hour each)

  • Features:

    • MED75y mass flow leak detector controls all test cycles

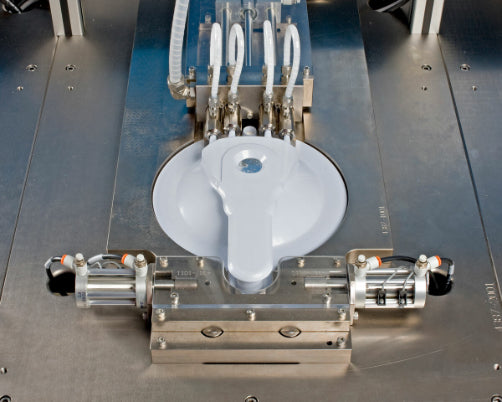

    • Custom fixturing restricts bag expansion without masking potential leaks

    • All materials and components are cleanroom compatible

Benefits

  • Real-time data access: USB and Ethernet connectivity for immediate recording and storage

  • High reliability: Gauge R&R meets stringent medical quality standards and ISO 16949

  • Efficient and scalable: Supports high-throughput testing for both small and large-volume medical fluid bags

InterTech’s Medical Fluid Bag Leak Test Systems deliver fast, deterministic, and traceable testing—ensuring safety, compliance, and quality for all medical fluid products.
