Advanced Cure Analysis and Viscoelastic Characterisation of Rubber Compounds

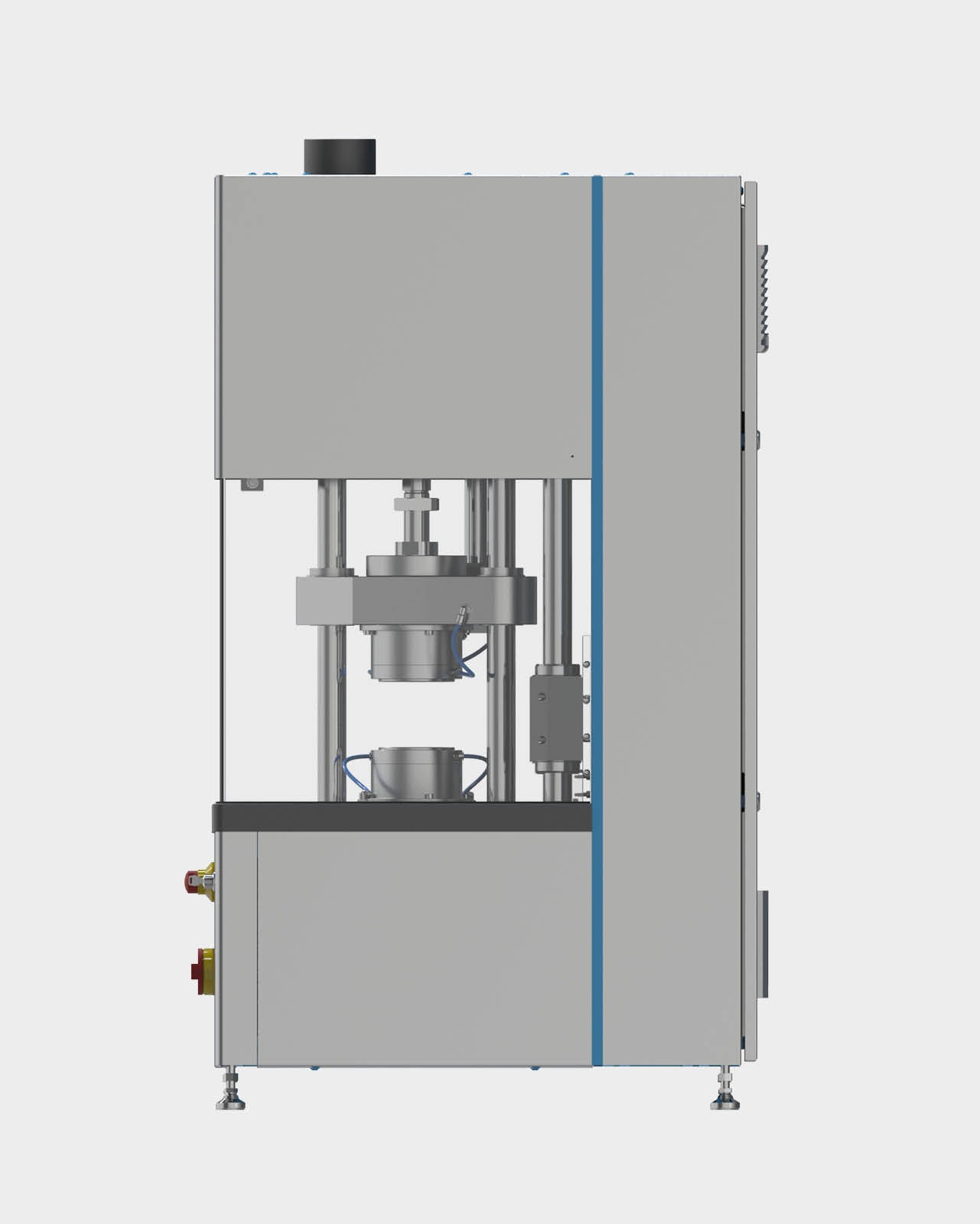

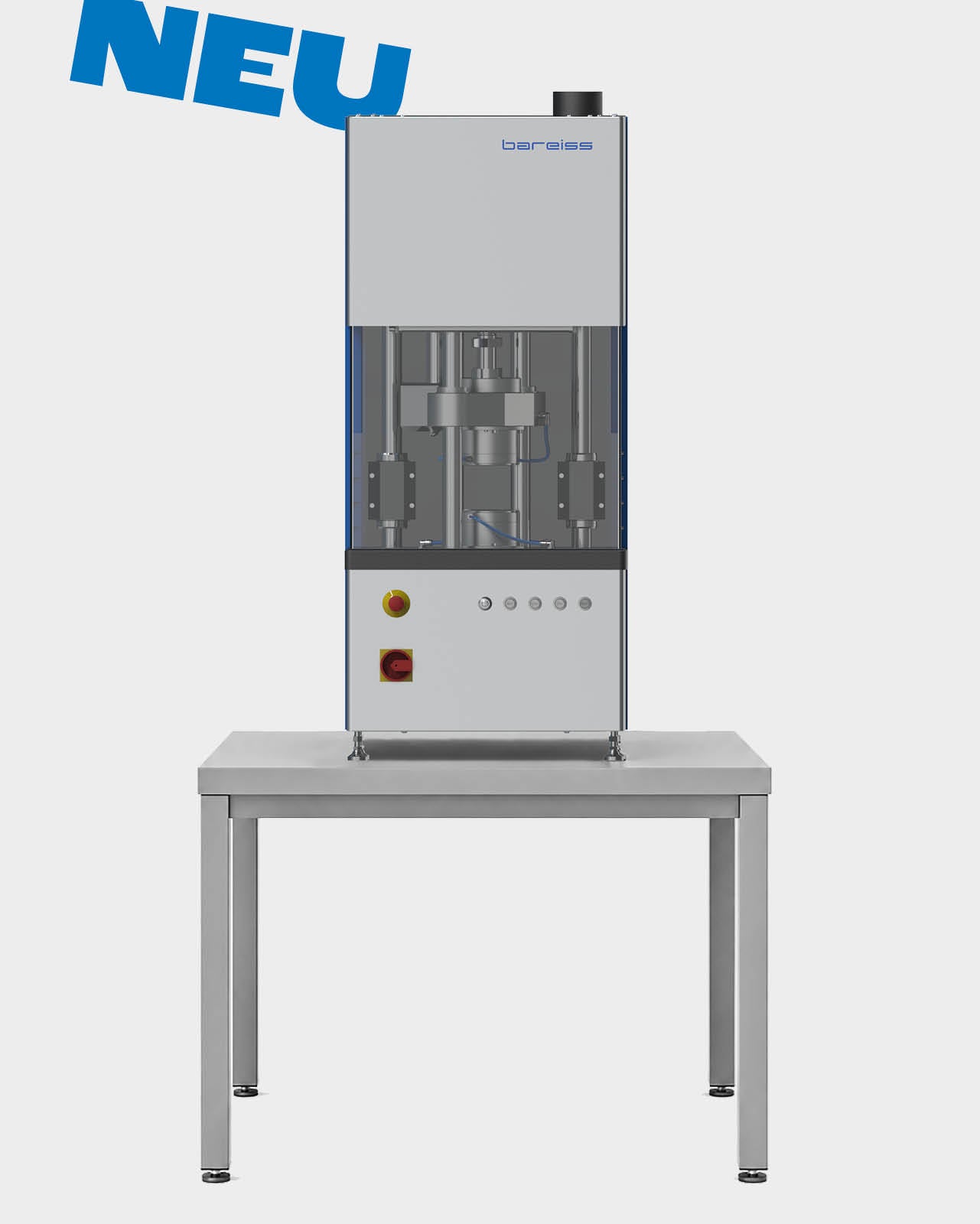

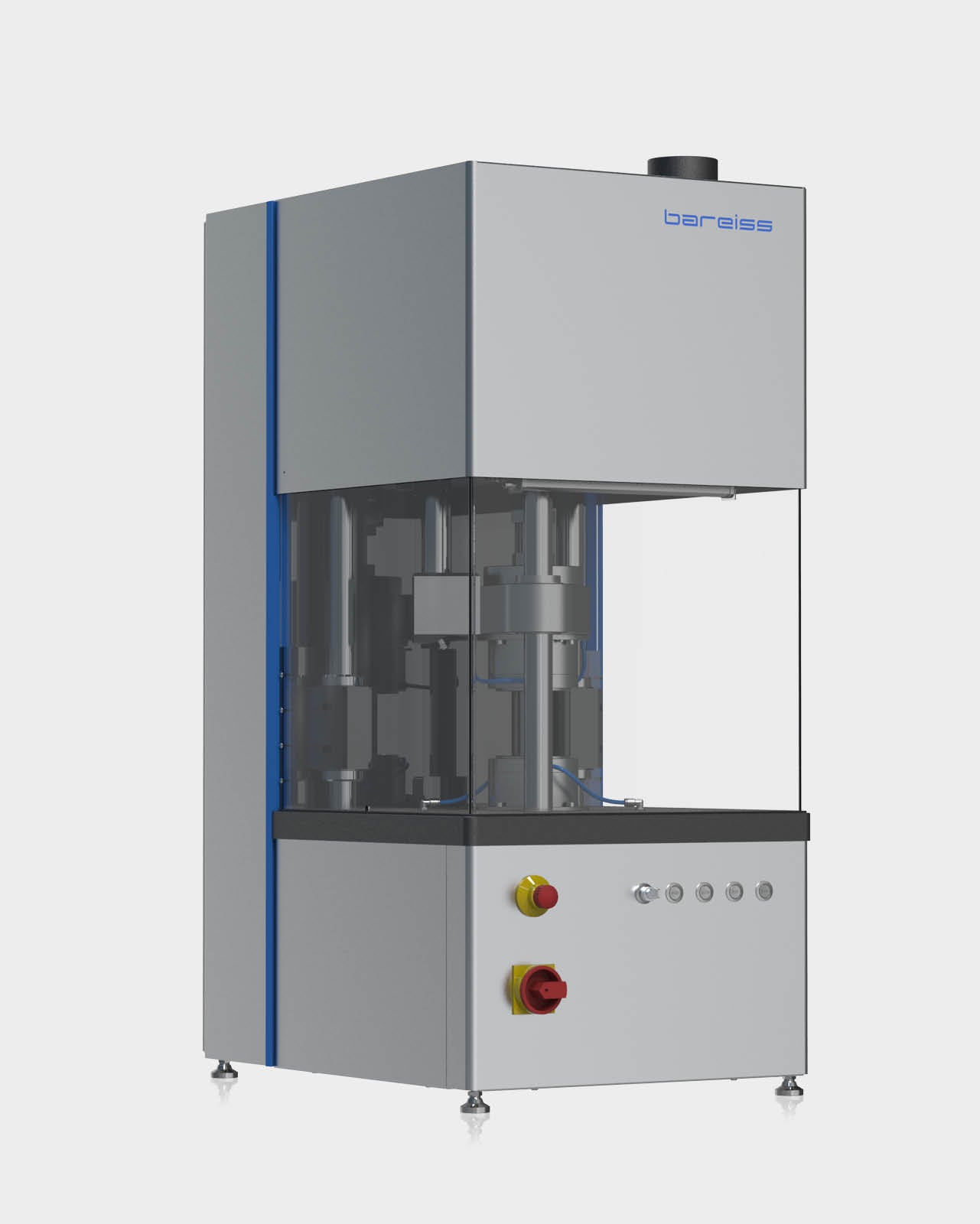

The MDR vario is a high-performance rotorless moving die rheometer designed to accurately measure the curing characteristics and viscoelastic properties of rubber compounds across an extended strain range.
Using advanced oscillating die technology, the MDR vario provides comprehensive vulcanisation data to support material development, process optimisation, and quality control. Its flexible testing capabilities allow manufacturers and researchers to analyse rubber behaviour under both isothermal and non-isothermal conditions, delivering reliable insights into compound performance.
With a rigid mechanical design, advanced temperature control, and intuitive BareissOne software, the MDR vario transforms complex rheological data into clear, actionable results.
Standards
- ASTM D5289
- DIN 53529
- ISO 6502
Measuring Methods
- Isothermal testing
- Non-isothermal testing
Applications
The MDR vario is suitable for analysing a wide range of rubber and polymer materials, including:
- Pure polymers
- Polymer blends
- Uncured rubber compounds
- In-situ compounds
- Thermoplastics
- Liquid Silicone Rubber (LSR)
- Thermoplastic Elastomers (TPE)
- Recovered Carbon Black (rCB) compounds
Typical applications include:
- Cure behaviour analysis
- Rubber formulation development
- Material comparison
- Production quality control
- Process optimisation
- Research and development
Product Overview
The MDR vario provides precise and reliable analysis of rubber compound curing behaviour through advanced moving die rheometer technology.
Designed for demanding laboratory environments, the system measures critical vulcanisation characteristics including torque development, curing kinetics, and material response during the transition from uncured compound to finished elastomer.
The extended strain range allows users to perform material-specific amplitude testing, improving measurement reproducibility and generating more meaningful cure data across different compound types.
The MDR vario's ultra-rigid frame, sealed biconical dies, and advanced temperature management system ensure stable measurement conditions and excellent repeatability while maintaining compliance with international testing standards.
Combined with the intuitive BareissOne software platform, the MDR vario enables efficient test management, data analysis, and reporting, helping laboratories make confident decisions based on accurate rheological information.
Key Features
Extended Strain Range for Improved Material Characterisation
The MDR vario supports an extended strain range, allowing users to select testing amplitudes according to the specific characteristics of each material.
Benefits include:
- Improved measurement reproducibility
- More accurate cure data
- Better characterisation of diverse rubber compounds
- Enhanced understanding of material behaviour
Fourier Transform Rheology (FT-Rheology) as Standard
The MDR vario captures torque and strain harmonics during every measurement cycle, enabling advanced Fourier Transform Rheology (FT-Rheology) analysis.
This provides:
- Improved transparency of measurement results
- Identification of potential measurement artefacts
- Deeper insight into material response
- More comprehensive rheological analysis
Integrated Air Cooling for Faster Testing
Air cooling is included as standard to reduce cooling times and improve laboratory efficiency.
The advanced temperature management system enables:
- Faster test cycles
- Improved throughput
- Accurate non-isothermal measurements
- Consistent temperature control
Ultra-Rigid Test Frame
The highly rigid mechanical structure minimises instrument compliance, ensuring accurate torque and strain measurement across a wide range of materials.
This provides:
- Excellent measurement stability
- High repeatability
- Reliable results across different compound types
- Long-term instrument performance
BareissOne Software Platform
The MDR vario integrates with BareissOne, a modern software platform designed to simplify rheometer operation, data analysis, and reporting.
BareissOne provides:
- Intuitive test setup
- Automated measurement workflows
- Clear data visualisation
- Result comparison
- Statistical analysis
- Test reporting
- Centralised measurement data management
The software enables laboratories to efficiently manage testing processes while maintaining full traceability.
Benefits
- Advanced rotorless moving die rheometer technology
- Measures cure characteristics and viscoelastic properties
- Extended strain range for improved analysis
- Suitable for isothermal and non-isothermal testing
- Complies with ASTM, DIN, and ISO standards
- High measurement accuracy and repeatability
- Advanced FT-Rheology capability included
- Fast cooling for improved productivity
- Rigid construction for stable results
- Suitable for a wide range of rubber and polymer materials
- User-friendly BareissOne software integration
Typical Industries
- Rubber manufacturing
- Tyre production
- Automotive components
- Polymer processing
- Elastomer development
- Chemical industries
- Research laboratories
- Quality assurance facilities
