Professional Moisture Analysis with Fast, Accurate and Repeatable Results

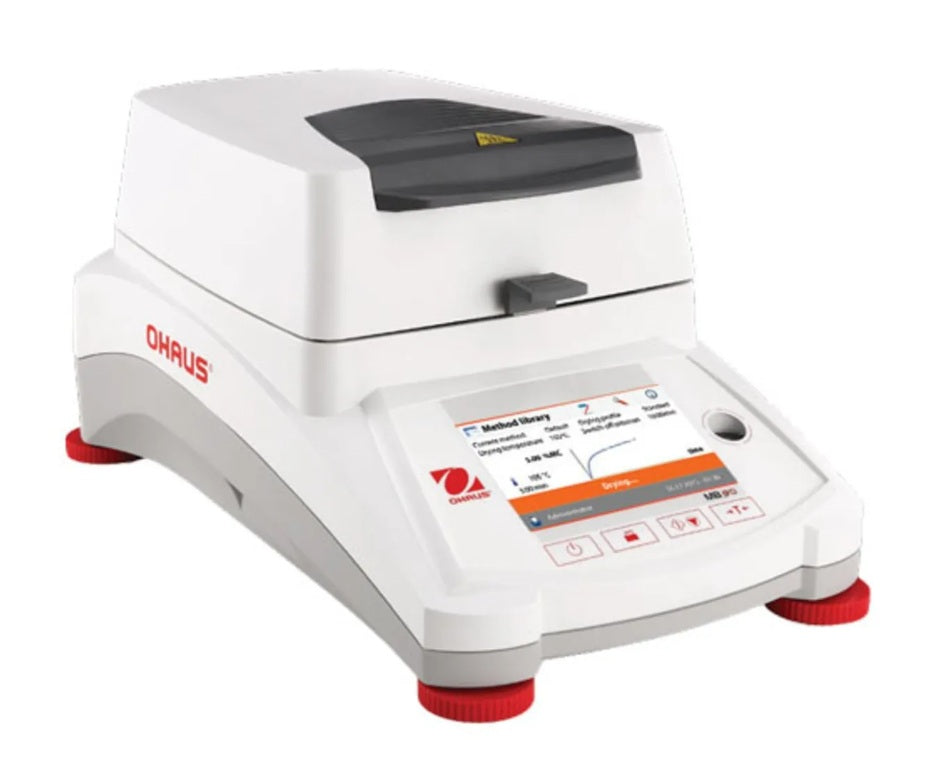

The Ray-Ran MB90 and MB120 Advanced Moisture Analysers provide a powerful and reliable solution for measuring moisture content across a wide range of materials and industries.
Designed for professional laboratories, research facilities and quality control environments, these advanced moisture analysers combine precision halogen heating technology with intuitive touchscreen operation to deliver fast, accurate and repeatable moisture measurements.
Suitable for applications including plastics, polymers, food, textiles, ceramics, chemicals and industrial materials, the MB90 and MB120 help manufacturers improve process control, verify material consistency and maintain product quality.
Advanced Halogen Heating Technology

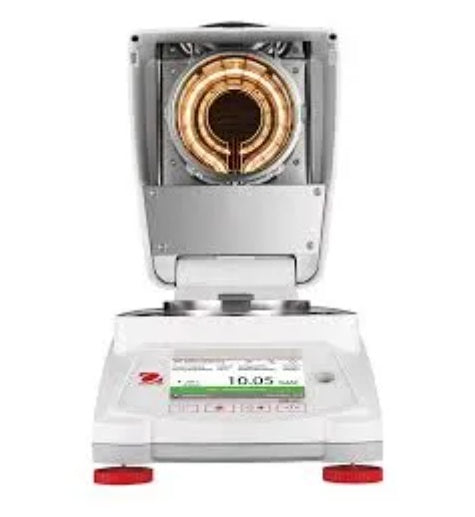

Both models feature a precisely controlled halogen heating system that provides rapid and uniform heat distribution across the sample.
The advanced heating technology enables:
- Faster drying times
- Improved repeatability
- Accurate moisture determination
- Consistent results across multiple samples
With readability down to 0.01% moisture content, the MB90 and MB120 provide the accuracy required for demanding quality control and research applications.
Intelligent Moisture Analysis Made Simple
The large colour touchscreen display provides easy access to all test parameters, settings and results.
The intuitive interface allows operators to quickly configure:
- Drying profiles
- Temperature settings
- Shut-off criteria
- Test methods
- Sample information
Results are displayed clearly, including:
- % Moisture
- % Solids
- % Regain
- Sample weight
- Drying time
- Temperature
- Method name
- Drying curve
- Statistical analysis
Temperature Guide for Optimised Testing
The built-in Temperature Guide helps determine the ideal drying temperature for each sample, reducing setup time and improving test accuracy.
Heat is distributed evenly across the sample surface to provide consistent drying performance and reliable moisture measurements.
Flexible Drying Programs and Data Storage
The MB90 and MB120 allow users to create customised testing procedures with programmable drying profiles and automatic shut-off functions.
MB90 Features
- Stores up to 2 test methods
- Stores up to 100 results per method
- Standard and fast heating profiles
- Manual, timed and automatic shut-off criteria
- Heating range: 40°C–200°C
MB120 Features
- Stores up to 100 test methods
- Stores up to 1000 results per method
- Standard, fast, ramp and step heating profiles
- Seven selectable shut-off criteria
- Heating range: 40°C–230°C
These features improve laboratory efficiency by reducing setup time and supporting repeatable testing procedures.
Durable and Easy-to-Maintain Design
The MB90 and MB120 feature a robust die-cast housing designed for long-term laboratory use.
The tool-free cleaning design allows quick maintenance, while stainless steel components provide durability in demanding testing environments.
Features & Benefits
- Professional halogen moisture analysis system
- Fast and repeatable moisture measurements
- Accuracy up to 0.01% moisture content
- Large colour touchscreen interface
- Icon-driven menu navigation
- Temperature Guide for optimised testing
- Programmable drying methods
- Automatic shut-off functions
- Uniform sample heating
- Data storage and statistical analysis
- USB and RS232 connectivity
- Three-level user management
- Simple one-step operation keys
- Durable laboratory construction
Specifications
| Specification | Details |
|---|---|
| Model | RR-MB90 / RR-MB120 |
| Applications | Moisture Analysis, Quality Control |
| Heating Technology | Halogen Lamp |
| Capacity | MB90: 90 g / MB120: 120 g |
| Readability | 0.001 g |
| Moisture Display Resolution | 0.01% |
| Temperature Range | MB90: 40°C–200°C / MB120: 40°C–230°C |
| Display | 109 mm QVGA TFT Touchscreen |
| Interfaces | RS232, USB Host, USB Device |
| Power Supply | 100–240 VAC, 50–60 Hz |
| Weight | 5.23 kg |
| Dimensions | 210 × 360 × 180 mm (W × D × H) |
Applications
The Ray-Ran MB90 and MB120 Advanced Moisture Analysers are suitable for:
- Plastics and polymers
- Food testing
- Textiles
- Ceramics
- Chemicals
- Powders and granules
- Research and development
- Production quality control
- Material verification testing
Moisture Analysis for Quality Control and Research
The Ray-Ran MB90 and MB120 deliver reliable moisture measurement with advanced automation, flexible programming and intuitive operation, making them ideal solutions for laboratories requiring efficient and accurate material analysis.
