Heavy-Duty Crushing for Laboratory, Mining and Industrial Sample Preparation
The LT-A0090, LT-A0091 and LT-A0092 Jaw Crushers are robust, high-performance crushing machines designed to reduce rocks, ores, minerals and other hard materials to a controlled millimetric size. Built for demanding laboratory and industrial environments, the series provides reliable sample preparation for mining, geology, metallurgy, construction materials, ceramics, cement, recycling and materials testing.
Available in three crushing chamber sizes, the range allows users to select the appropriate capacity and configuration for their application.
Applications
Jaw Crushers are suitable for crushing and preparing a wide range of materials, including:
- Ores and minerals
- Rocks and geological samples
- Coal and coke
- Basalt
- Cement clinker
- Ceramics and chamotte
- Construction materials
- Feldspar
- Glass
- Alloys and other hard materials
Choose the Right Jaw Crusher

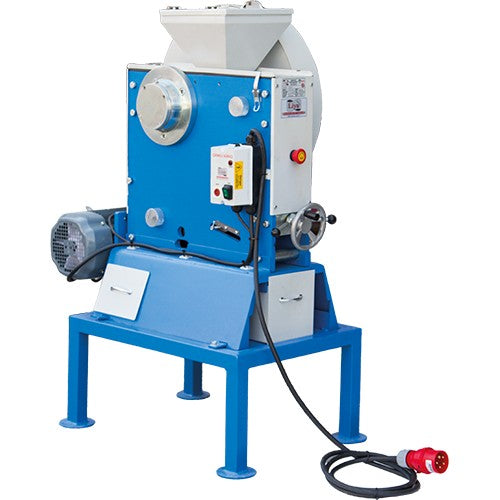

LT-A0090 – Jaw Crusher 100 × 100 mm
The LT-A0090 is a compact, heavy-duty jaw crusher suited to laboratory and smaller-scale sample preparation applications. Its robust construction and adjustable jaw gap provide controlled crushing for consistent sample preparation.
Key specifications:
- Crushing chamber: 100 × 100 mm
- Capacity: 200 kg/h
- External dimensions: 40 × 80 × 135 cm
- Weight: 250 kg
- Power supply: 380 V, 50–60 Hz, 3 ph

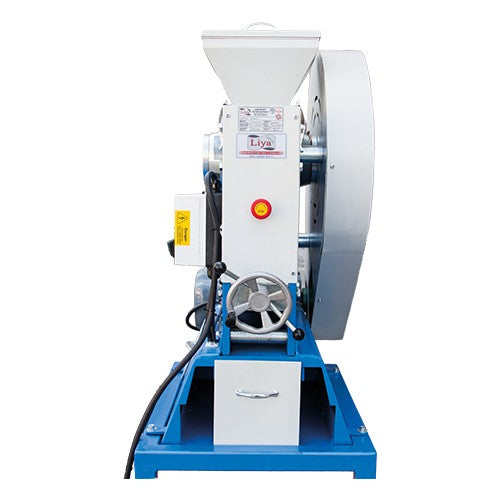

LT-A0091 – Jaw Crusher 100 × 200 mm
The LT-A0091 provides increased crushing capacity for laboratories and industrial facilities requiring higher throughput. It is designed for continuous feeding and efficient reduction of hard materials to a fine, manageable size.
Key specifications:
- Crushing chamber: 100 × 200 mm
- Capacity: 300 kg/h
- External dimensions: 58 × 95 × 135 cm
- Weight: 300 kg
- Power supply: 380 V, 50–60 Hz, 3 ph
LT-A0092 – Jaw Crusher 200 × 300 mm
The LT-A0092 is the largest model in the range, providing higher throughput for demanding industrial and mining applications. With a robust 200 × 300 mm crushing chamber, it is designed for processing larger sample volumes and continuous operation.
Key specifications:
- Crushing chamber: 200 × 300 mm
- Capacity: 300–500 kg/h
- External dimensions: 135 × 85 × 110 cm
- Weight: 850 kg
- Power supply: 380 V, 50–60 Hz, 3 ph
Robust Construction for Demanding Applications
The Jaw Crushers feature a durable metal-alloy construction with an electrostatically painted finish. The jaw plates are manufactured from 16–18% chrome-manganese steel, while the wear plates are produced from 450 Brinell material for high wear resistance and extended service life.
A robust V-belt drive system transfers power from the motor to the crushing mechanism, while a central lubrication system simplifies maintenance of the moving components.
Adjustable Crushing Size
The jaw opening can be continuously adjusted from 0–15 mm, allowing operators to control the final particle size according to their sample preparation requirements. An external analogue display allows the operator to easily monitor both the zero point and jaw gap setting.
For suitable applications, approximately 75% of the crushed material can be reduced to 2 mm or smaller, supporting downstream laboratory analysis and sample preparation.
Safe, Practical Operation
Safety and ease of maintenance are incorporated throughout the design. The hinged feeding funnel helps prevent material rebound while allowing easy access for cleaning. A locking mechanism prevents accidental opening during operation, while a safety interlock immediately stops the machine if the lock is manually released.
The crusher body is designed to minimise dust escape during operation, with noise emissions of up to 85 dB, depending on the working environment.
An electronic-mechanical protection system automatically stops the crusher in situations such as material jamming or overheating, helping protect the machine and operator.
Easy Cleaning and Maintenance
The removable jaws provide convenient access for cleaning, maintenance and jaw replacement. A collection tray at the bottom of the crusher captures processed material for easy removal and transfer to the next stage of sample preparation.
Key Benefits
- Heavy-duty crushing of rocks, ores and minerals
- Three models to suit different sample sizes and throughput requirements
- Crushing capacities from 200 to 500 kg/h
- Adjustable jaw gap from 0–15 mm
- Durable chrome-manganese steel jaw construction
- High-wear-resistance 450 Brinell wear plates
- Suitable for continuous sample feeding
- Robust V-belt drive system
- Central lubrication for simplified maintenance
- Safety interlock and overload/overheating protection
- Designed for easy cleaning and jaw replacement
- Collection tray for convenient sample recovery
- Suitable for laboratory and industrial environments
Technical Specifications
| Product Code | Product Name | Capacity | External Dimensions | Weight | Power Supply |
|---|---|---|---|---|---|
| LT-A0090 | Jaw Crusher 100 × 100 mm | 200 kg/h | 40 × 80 × 135 cm | 250 kg | 380 V, 50–60 Hz, 3 ph |
| LT-A0091 | Jaw Crusher 100 × 200 mm | 300 kg/h | 58 × 95 × 135 cm | 300 kg | 380 V, 50–60 Hz, 3 ph |
| LT-A0092 | Jaw Crusher 200 × 300 mm | 300–500 kg/h | 135 × 85 × 110 cm | 850 kg | 380 V, 50–60 Hz, 3 ph |
Optional Configuration
LT-A0092 Jaw Crusher with Proportional Sample Divider
The LT-A0092 can also be supplied with a proportional sample divider, providing a practical solution where crushed material needs to be systematically divided into representative samples for subsequent laboratory analysis.
Ideal for Mining & Materials Sample Preparation
From laboratory-scale crushing to higher-throughput industrial processing, the LT-A0090, LT-A0091 and LT-A0092 Jaw Crushers provide a robust solution for reducing hard materials to a controlled particle size before further testing, analysis or processing.
Contact Hylec Controls to select the Jaw Crusher configuration best suited to your material, sample size and required throughput.
