Electrical components aren’t just defined by their conductivity or insulation—they must also withstand mechanical stress. For components like insulators and electrical connections, mechanical strength is critical, particularly for insulators used outdoors where weathering and aging can reduce their load-bearing capacity over time. Accurate evaluation of these effects is essential to ensure safety, reliability, and performance.

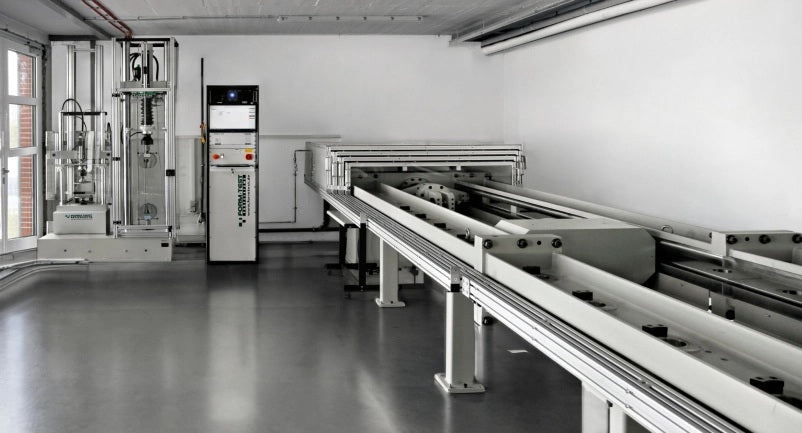

The ZM 400 Horizontal Tensile Testing Machine, developed by FORM+TEST for Bayernwerk Netz GmbH, offers a versatile and reliable solution for testing a wide range of electrical components and materials. Designed to deliver precise, reproducible results, it accommodates everything from the smallest to the largest specimens, and from minimal to high load forces.
Applications
-
Material and component testing
-
Research and development
-
Quality control
Test Fields
-
Materials testing
-
Component testing
Technical Specifications
Design & Load Capacity:
-
Static test force:
-
Load range I: 400 kN
-
Load range II: 50 kN
-
Load range III: 5 kN
-
Accuracy:
-
Class 0.5 according to DIN EN ISO 7500-1
Specimens:
-
Electrical insulations
-
Wires
Configuration:
-
Horizontal test frame ZM 400
-
Tensile test machines TTM 50 and TTM 5
-
Manual crosshead adjustment
-
Protective shield for safe operation
-
Single test cylinder EPZ-D
-
DIGIMAXX C30 digital controller
-
Range of grips and fixtures for different specimen types and sizes
Special Feature:
-
Multiple test frames optimised for different maximum load levels
Options:
-
Extensometer for precise elongation measurements
The ZM 400 system combines flexibility, precision, and safety to meet the stringent requirements of modern electrical component testing, ensuring that both small-scale and large-scale specimens are tested accurately under controlled conditions. Its modular configuration allows customisation for a wide range of loads and applications, making it ideal for laboratories focused on innovation, quality assurance, and long-term reliability.
