Electronic Tensile Tester GBL-L2

Vendor
GBPI
Regular price
$0.00
Sale price
$0.00
Regular price
Sold out
Unit price
per

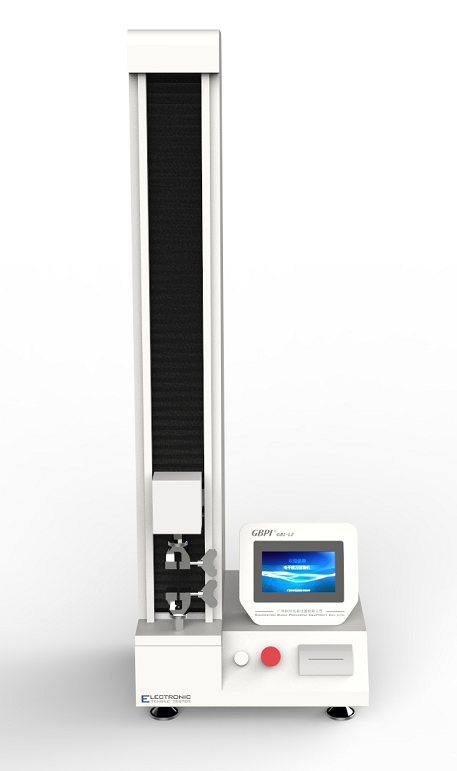

The GBL-L2 Electronic Tensile Tester is a popular single-column mechanical performance testing machine designed for various metal and non-metal materials. The instrument features high-precision sensors, ensuring accurate force measurement, stable loading, and prolonged testing machine lifespan. With an elegant table-type column structure, it provides a beautiful and easy-to-use design. Equipped with professional software and an LCD screen, it allows real-time display of test curve data and easy access to test reports. The instrument ensures laboratory convenience with fully automatic operation, a control measurement unit, and safety features like limit protection, overload protection, and emergency stop.

Test Principle The processed sample is fixed between the two chucks of the fixture. Upon starting the instrument, the two chucks move relative to each other, and the force sensor on the movable chuck collects force value changes during the test. Simultaneously, the built-in displacement sensor collects displacement changes, enabling the calculation of tensile, peeling, heat sealing, tearing, and other performance indicators.

Standards ASTM D828, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F904, JIS P8113, QB/T 2358, GB 8808, GB 13022, GB/T 1040, GB 4850, GB/T 7753, GB/T 7754, GB/T 453, GB/T 17200, GB/T 16578.1, QB/T 1130, GB/T 2791, GB/T 2790, GB/T 2792, GB/T 7122, GB/T 10004, GB/T 17590, JJG 139, GB/T 6344, GB 10808, YBB 00112003, YBB 00102003, YBB 00132002, YBB 00202004

Specifications

  • Test force range: 0~300 N (Option 0~500 N) 1250% Elongation
  • Test Accuracy: Within ±0.1 %FS of the displayed value (Level 1)
  • Test Speed: 1~500 mm/min (infinitely variable speeds)
  • Displacement Accuracy: Within ±0.1% of the displayed value
  • Test Width Range: 30 mm (can be customised for 50 mm)
  • Effective Test Distance: 750 mm (can be customized for 1000 mm)
  • Instrument Size: L×W×H: 475 mm×460 mm×1430 mm
  • Weight: 76.5 kg
  • Power: AC 220 V, 50 Hz

Features

  • Elegant and convenient body design with a table-type column structure.
  • Multi-functional with high-efficiency test methods for stretching, peeling, heat sealing, tearing, and more.
  • Safe and high-end mechanical structure with three-level safety protection and emergency stop switch.
  • Intelligent operating system with user management, authority management, and audit trail capabilities.
  • Laboratory Intelligent IoT Platform support for managing experimental data, remote diagnosis, and troubleshooting.

Application

  • Plastic Film: Stretching, peeling, heat sealing, tearing, and other performance tests.
  • Composite Film Bag: Tensile, peeling, heat sealing, tearing, and other performance tests.
  • Paper: Tensile, peeling, heat sealing, tearing, and other performance tests.
  • Medical Patch: Stretching, peeling, heat sealing, tearing, and other performance tests.
  • Pressure Sensitive Tape: Stretching, peeling, heat sealing, tearing, and other performance tests.
