High-Precision Control for Building Materials Testing
Directly replaces the widely used C20 without complex upgrades

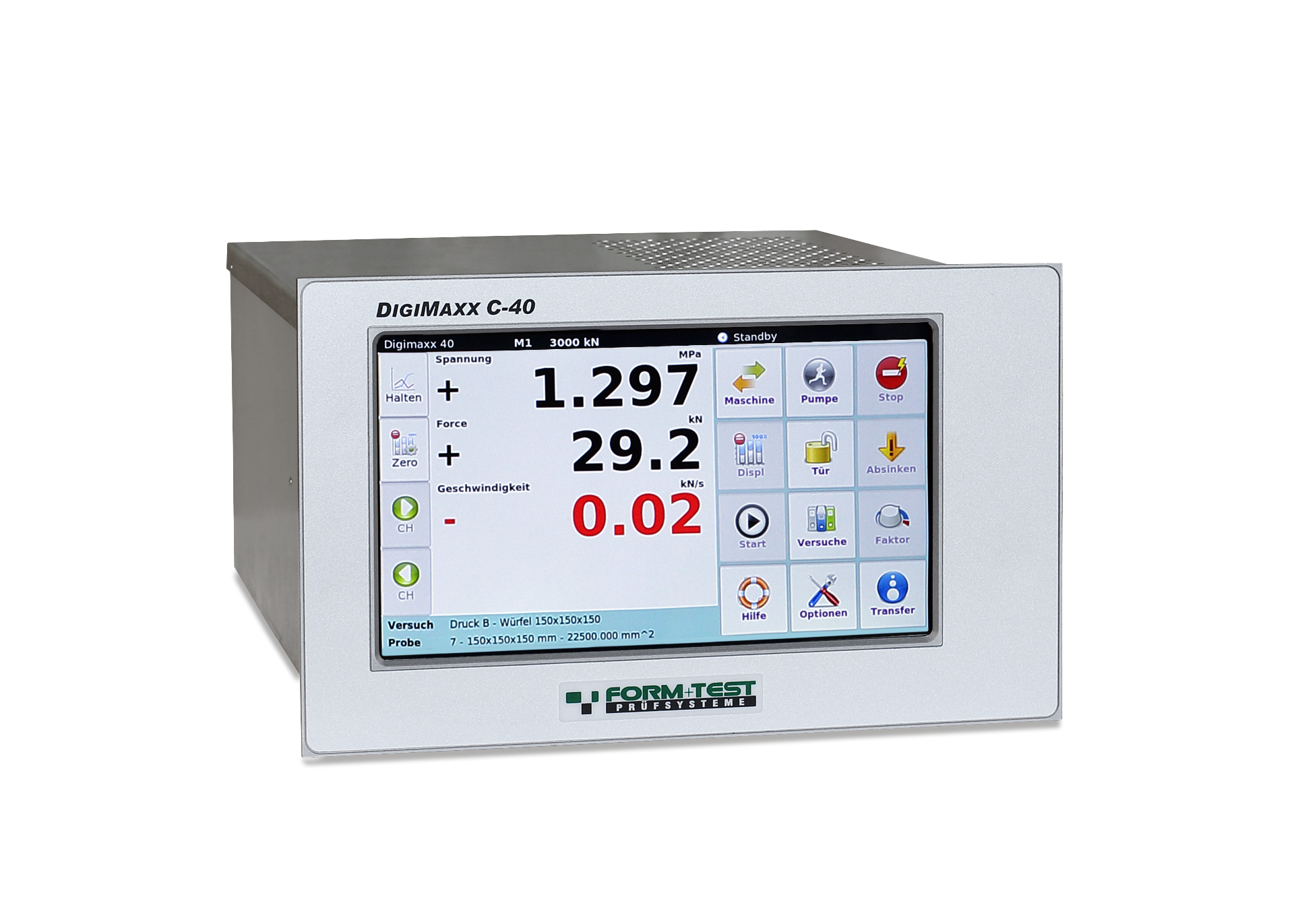

The DIGIMAXX® C-40 is the latest generation stand-alone digital control system, designed for maximum accuracy, reproducibility, and efficiency in static and quasi-static materials testing. Ideal for civil engineering and construction laboratories, it combines robust hardware, intuitive operation, and advanced software support to streamline testing workflows.
Key Features
-
Modular system with expansion options and long-term component availability
-
Controls up to 4 machine frames (non-parallel operation) with high stability
-
PID controller with DSP processor for precise signal processing and control
-
Optional handwheel for convenient setup operation
-
Supports up to 8 control and measurement channels (force, displacement, strain, E-modulus)
-
Fully compatible with previous DIGIMAXX platforms (C20, C22, C24)
Advanced Software Integration
-
PROTEUS MT software (optional) for automated test execution, data acquisition, and evaluation
-
Event detection for test monitoring: hardware limits, break detection, etc.
-
Real-time PID adjustment for optimized control loops
-
Software-based linearization of force channels
Touch Panel Operation
-
7" capacitive touch display, intuitive and durable for harsh lab environments
-
Menu-guided interface for fast, easy parameter setup
-
Direct control of drive, door interlocks, and test parameters
-
Manual and automated zero adjustment of force channels
-
Sample storage with USB export for seamless data management
-
Role-based access control for inspectors, lab managers, service technicians, and administrators
Data & Connectivity
-
Measuring and control clock: 2 kHz | Measured value transmission: up to 1 kHz
-
Connects to all common sensors and input devices: control valves, force/displacement transducers, strain gauges, 10V inputs/outputs
-
6 galvanically isolated digital inputs | 9 potential-free relay outputs
-
Ethernet port for PC software communication
-
USB port for fast data export
Applications
-
Civil and construction engineering laboratories
-
Quality control and certification of building materials
-
Research on mechanical properties and durability of concrete, masonry, and composites
The DIGIMAXX® C-40 combines FORM+TEST reliability with modern functionality, making it the ideal choice for laboratories seeking precision, flexibility, and efficient operation in materials testing.
