DCWC Submersible LVDT Displacement Transducer (4–20mA)

Regular price
$0.00
Sale price
$0.00
Regular price
Sold out
Unit price
per

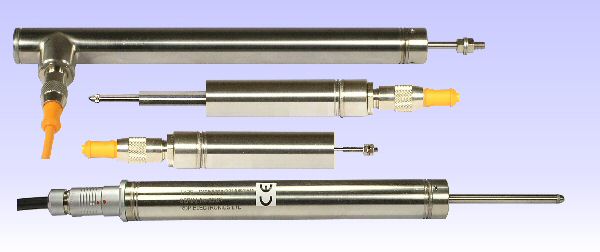

High-Precision Position Sensing for Submersible Applications

The DCWC series LVDT displacement transducers are engineered for accurate and reliable linear position measurement in demanding environments. Utilising the Linear Variable Differential Transformer (LVDT) principle, these sensors offer infinite resolution, clean signal output, and exceptional longevity—with no internal electrical contact across the sensing element.

Designed specifically for submersible applications, the DCWC can operate while fully immersed in compatible non-magnetic fluids, without compromising performance. Its rugged stainless steel construction ensures durability in harsh and wet environments.

Each unit features built-in electronics for DC supply and output, with the added convenience of a 4–20mA 2-wire output option—ideal for seamless integration into industrial control systems.

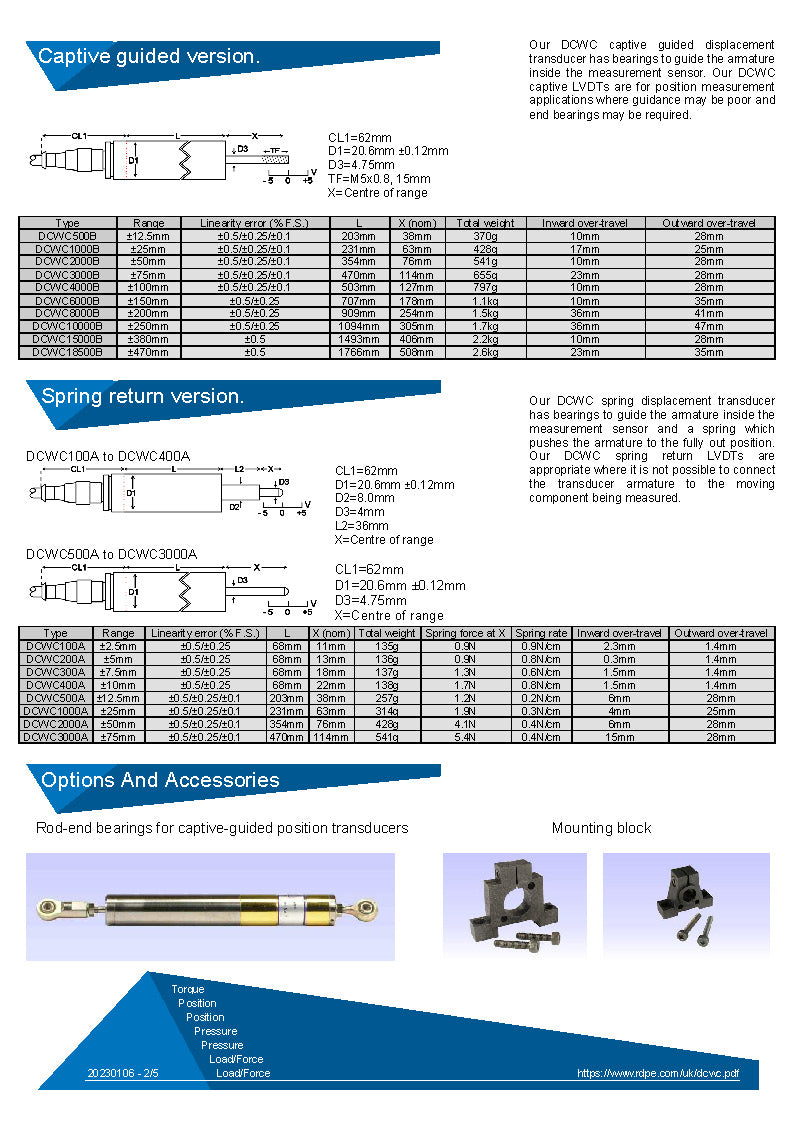

Available Configurations:

  • Unguided: Separate armature for truly non-contact operation—ideal where external guidance is available.

  • Captive and Spring Return options also available upon request.

Key Features:

✔️ High measurement accuracy

✔️ Infinite resolution

✔️ Submersible stainless steel design

✔️ 4–20mA 2-wire output (optional)

✔️ Long operational life

✔️ Choice of mounting and return configurations

Perfect for use in marine, offshore, hydraulic, and industrial environments requiring precise displacement measurement under water or in wet conditions.

Need help choosing the right configuration?
Contact us to customise the DCWC for your application.
