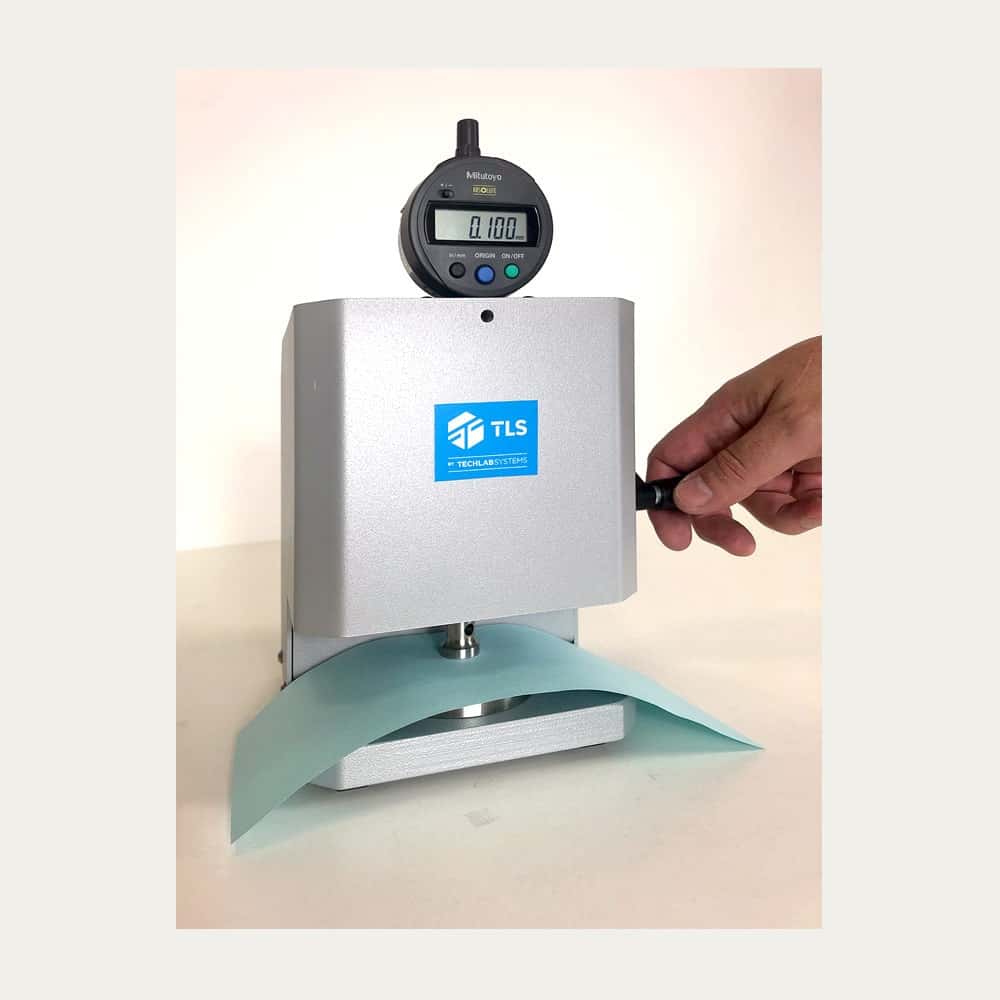

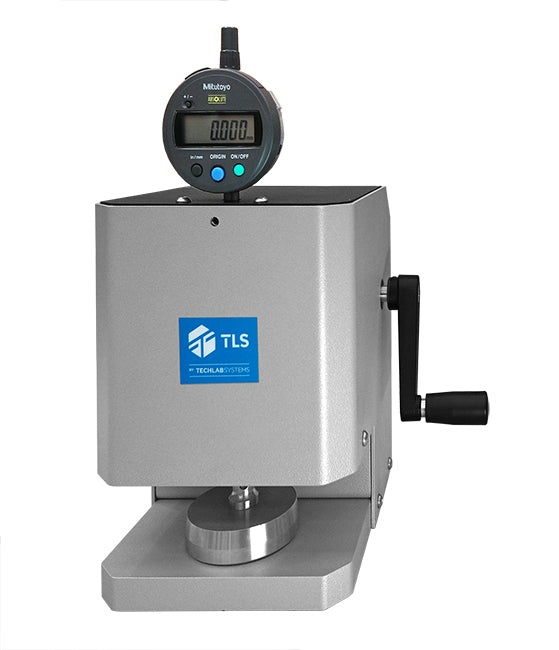

The Digital Micrometer M5 Series is a precision benchtop instrument designed for fast, accurate thickness measurement of paper, tissue, paperboard, compact board, and corrugated cardboard. Operated manually via an ergonomic rotary crank, it delivers highly repeatable results for quality control, laboratory testing, and production environments.
Available in a range of models with different measuring resolutions, probe pressures and contact areas, the M5 Series complies with leading international testing standards, making it suitable for paper mills, packaging manufacturers, research laboratories and testing facilities.
Features
- Precision manual operation with ergonomic rotary lever
- Large digital display with zero reset function
- Fast and repeatable thickness measurements
- Robust benchtop construction for laboratory and production use
- Safe and simple operation
- Compatible with T-LAB data acquisition systems
- Multiple models available for paper, tissue and corrugated board applications
- Manufactured to comply with international testing standards
Applications
The M5 Series is ideal for measuring the thickness (caliper) of:
- Paper
- Tissue paper
- Paperboard
- Compact cardboard
- Corrugated cardboard
Common applications include:
- Paper manufacturing
- Packaging quality control
- Corrugated box production
- Research and development laboratories
- University and testing laboratories
Compliant Standards
Paper
- BS DIN EN ISO 534
- UNE 534
- PAPTAC D4
- SCAN P7
- TAPPI T411 (optional models)
Tissue Paper
- DIN EN ISO 12625-3
- UNE 12625-3
- SCAN P47
Corrugated Cardboard
- DIN EN ISO 3034
- NF EN ISO 3034
- UNE 3034
- FEFCO No. 3
- SCAN P31
Available Models
| Model | Application | Resolution | Measuring Range | Pressure |
|---|
| M5-P2 | Paper | 0.01 mm | 0–10 mm | 100 kPa (ISO) |
| M5T-P2 | Paper | 0.01 mm | 0–10 mm | 50 kPa (TAPPI) |
| M5-P3 | Paper | 0.001 mm | 0–10 mm | 100 kPa (ISO) |
| M5T-P3 | Paper | 0.001 mm | 0–10 mm | 50 kPa (TAPPI) |
| M5-T3 | Tissue Paper | 0.001 mm | 0–10 mm | 2 kPa |

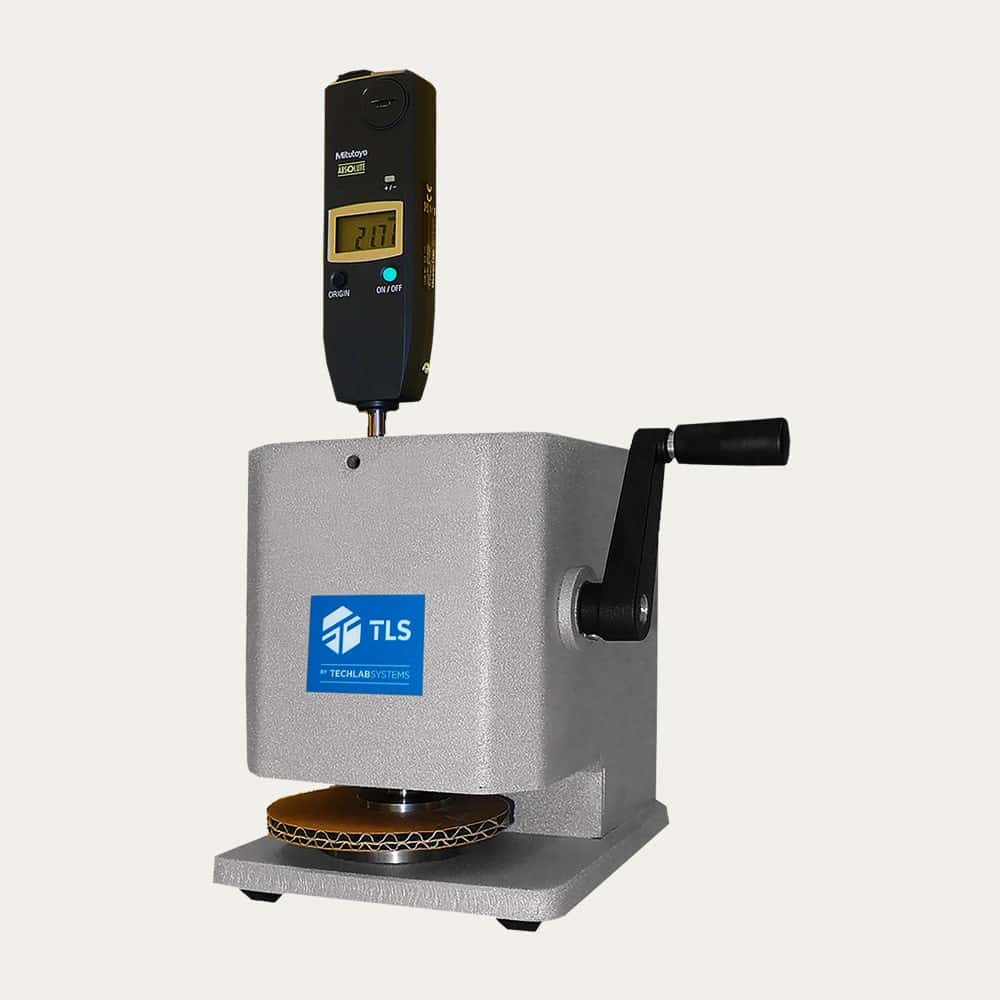

| M5-CO | Corrugated Board | 0.01 mm | 0–15 mm | 20 kPa |
| M5-CO3 | Corrugated Board | 0.001 mm | 0–15 mm | 20 kPa |
Technical Specifications
| Feature | Specification |
|---|
| Operation | Manual rotary lever |
| Display | Digital LCD with zero reset |
| Measurement Range | 0–10 mm or 0–15 mm (model dependent) |
| Resolution | 0.01 mm or 0.001 mm |
| Probe Area | 2 cm² or 10 cm² (model dependent) |
| Standards | ISO and TAPPI model options available |
| T-LAB Compatible |
Yes |
Standard Supply
- Digital Micrometer M5 Series (selected model)
- Operating documentation
Shipping Information
- Packaging Dimensions: 300 × 400 × 500 mm (W × D × H)
- Gross Weight: 22 kg
- Packaging: Phytosanitary-treated wooden crate suitable for international shipping
The Digital Micrometer M5 Series provides reliable, standards-compliant thickness measurements for paper and packaging materials, helping manufacturers and laboratories maintain consistent product quality and meet international testing requirements.
