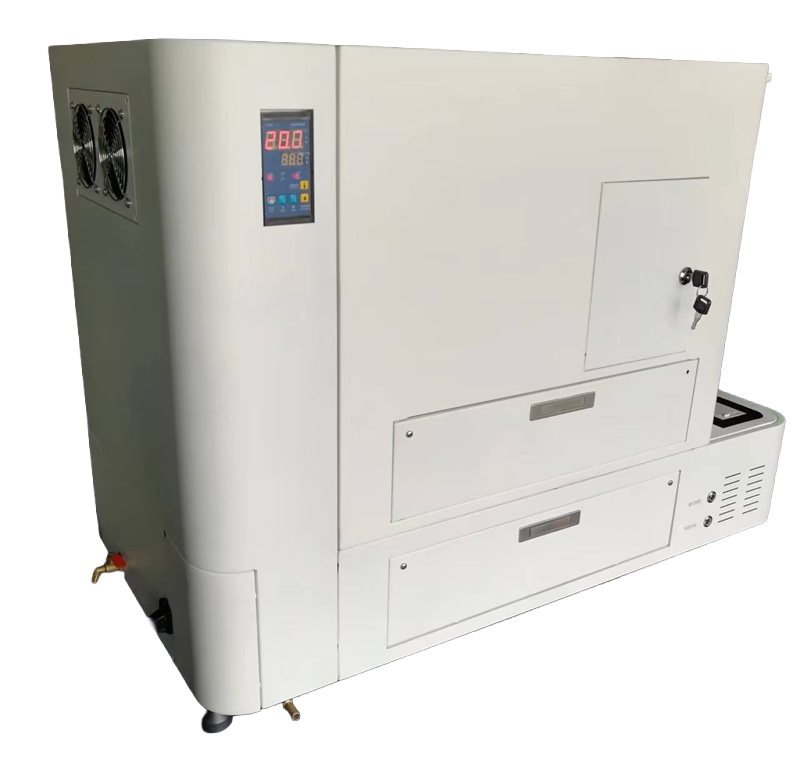

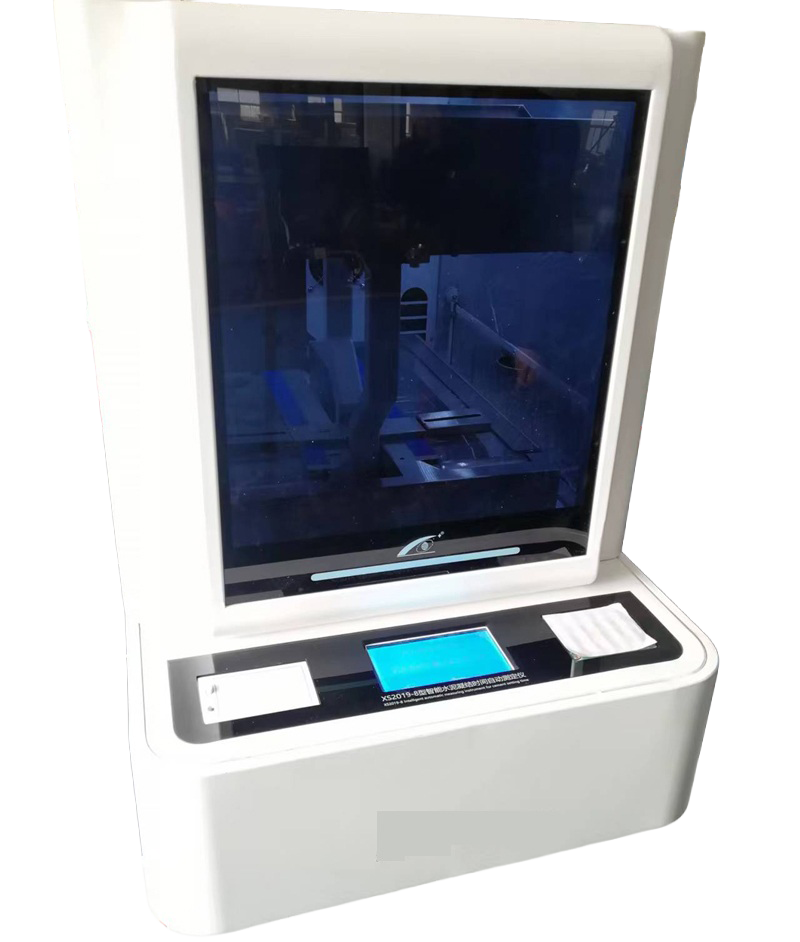

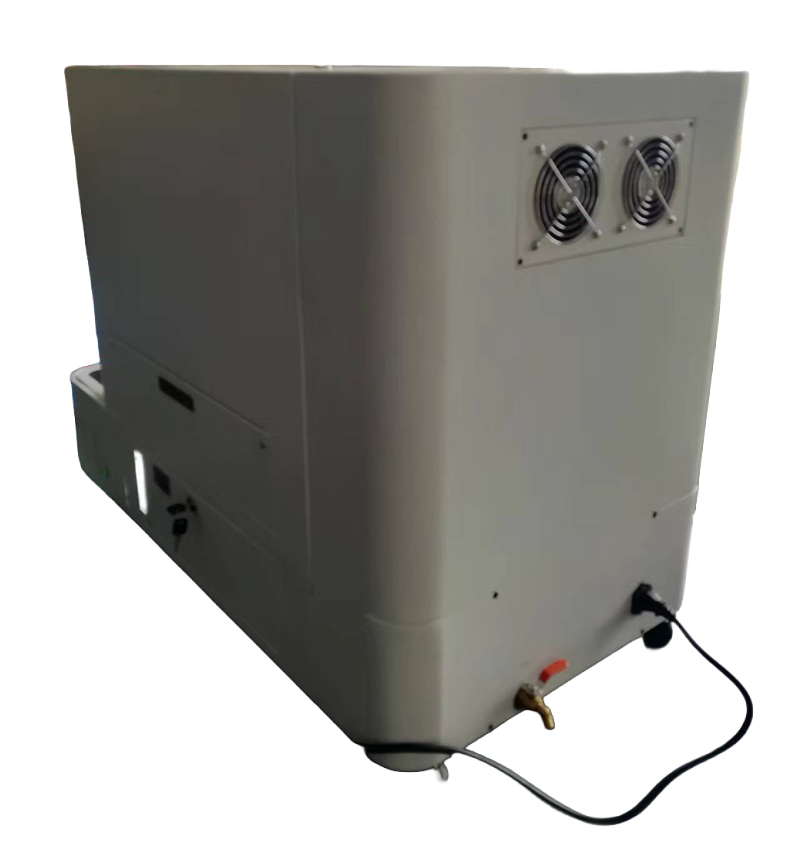

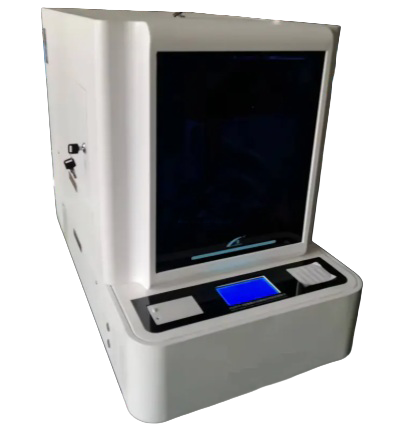

Computer Controlled Vicat Needle Apparatus – Model XS2019-8

Intelligent Cement Setting Time Meter

The XS2019-8 Computer Controlled Vicat Needle Apparatus is a fully automated system designed to accurately measure the setting time of cement in accordance with international testing standards. This intelligent device replaces traditional manual methods and the need for a separate temperature and humidity chamber, delivering high precision, repeatability, and ease of operation for professional cement testing laboratories.

Key Features

• Automatic Multi-Sample Testing: Accommodates up to eight Vicat moulds simultaneously, with individual automatic alarms for each sample.

• Integrated Environmental Control: Built-in temperature and humidity control maintains a stable testing environment at 20 °C ± 1 °C and ≥ 90% relative humidity.

• High Measurement Accuracy:

  • Measurement range: 0–50 mm

  • Depth resolution: 0.1 mm

• Automated Operation: X and Y axes driven by precision roller screws and 16 W servo motors, ensuring accurate and smooth positioning.

• Self-Diagnostic Functions: Includes automatic detection and correction, as well as fault alarm prompts for reliable performance.

• Stable and Quiet Cooling: Equipped with an imported V-type frequency conversion compressor (80 W) for efficient temperature regulation.

• User-Friendly Data Recording: Records test duration up to 24 hours for long-term monitoring.

• Compact and Durable Design:

  • Dimensions: 900 × 500 × 640 mm

  • Weight: 90 kg

Technical Specifications

Applications

Ideal for cement laboratories, research institutions, and quality control facilities, the XS2019-8 provides consistent, automatic testing for cement consistency and setting time, ensuring compliance with EN 196-3 and ASTM C191 standards.
