Determine the Rebound Resilience of Flexible Polymer Foams
The Ball Rebound Tester is a precision instrument designed to measure the rebound resilience of flexible polymer foams by recording the rebound height of a freely falling steel ball after impact. It provides fast, accurate, and repeatable results for quality control, research, and product development applications.
Manufactured to meet international testing standards, the Ball Rebound Tester offers multiple measurement modes and intuitive operation, making it ideal for laboratories and production facilities evaluating foam elasticity and resilience.
Standards
- ASTM D3574
- DIN EN ISO 8307
Applications
The Ball Rebound Tester is used to determine the rebound resilience of flexible polymer foams, providing a reliable indication of a material's elasticity, energy absorption, and performance characteristics. It is suitable for quality assurance, material development, and production testing across a wide range of foam products.
Product Overview

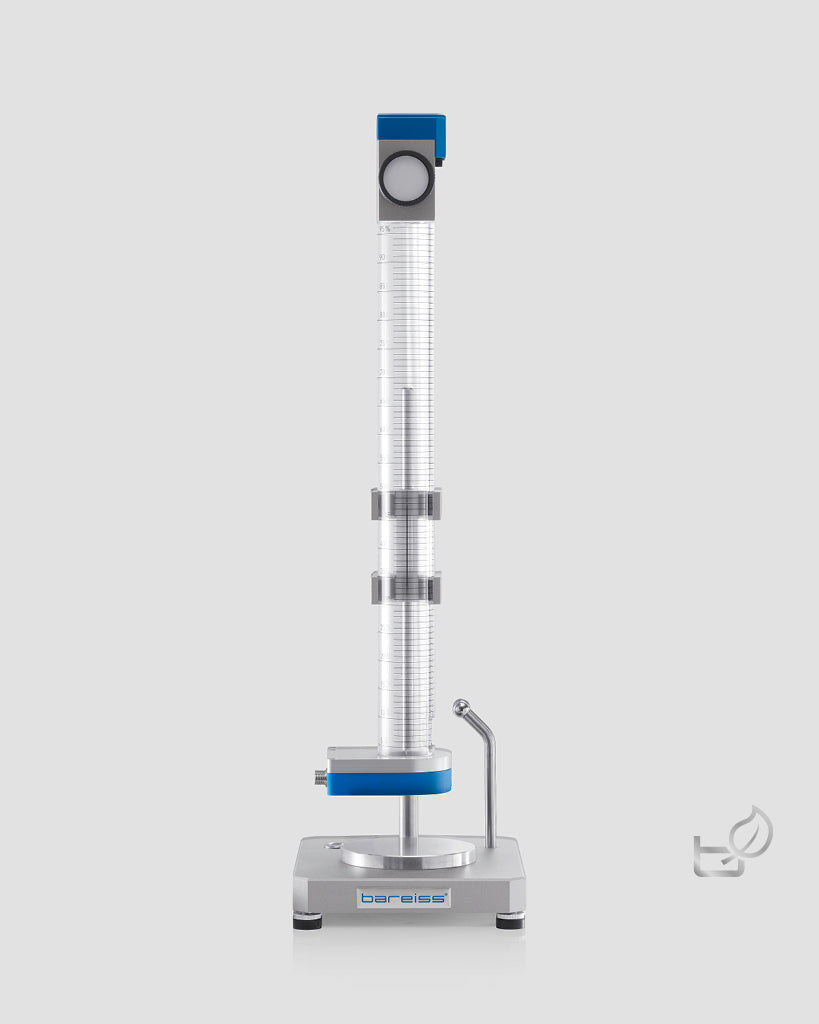

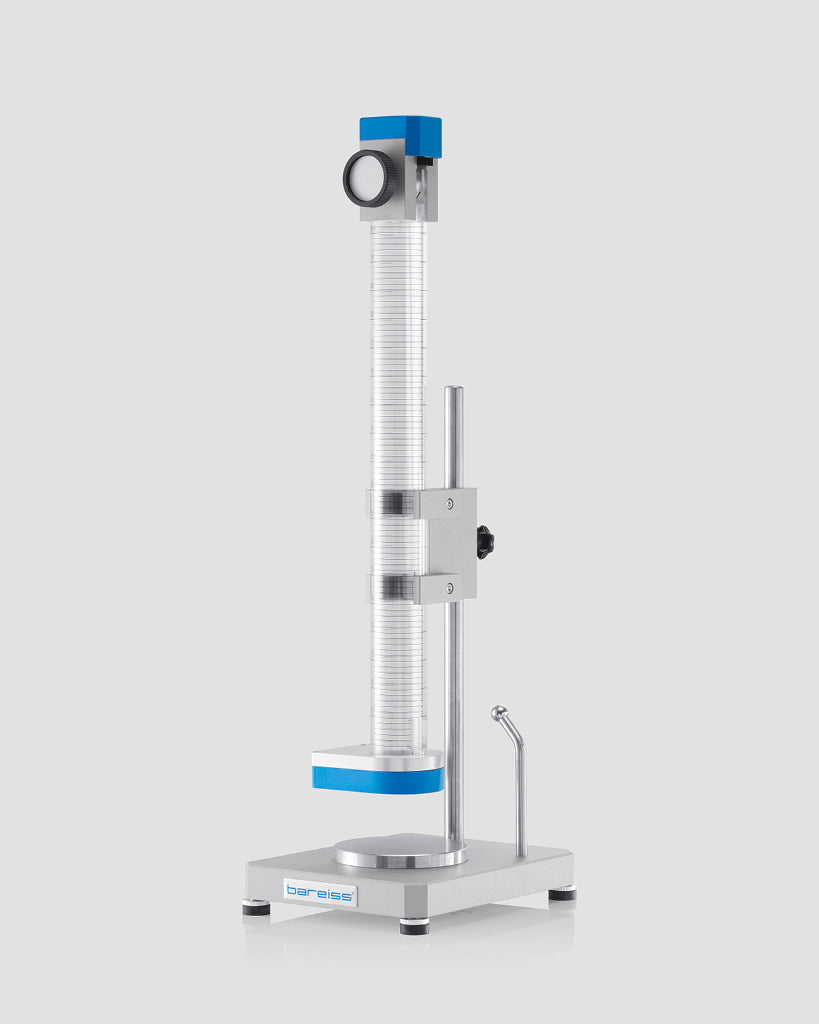

Testing is performed by allowing a steel ball to fall freely onto a plane-parallel foam specimen and electronically measuring the rebound height. The instrument's precision-guided vertical drop tube ensures an unobstructed and consistent fall for highly repeatable test results.

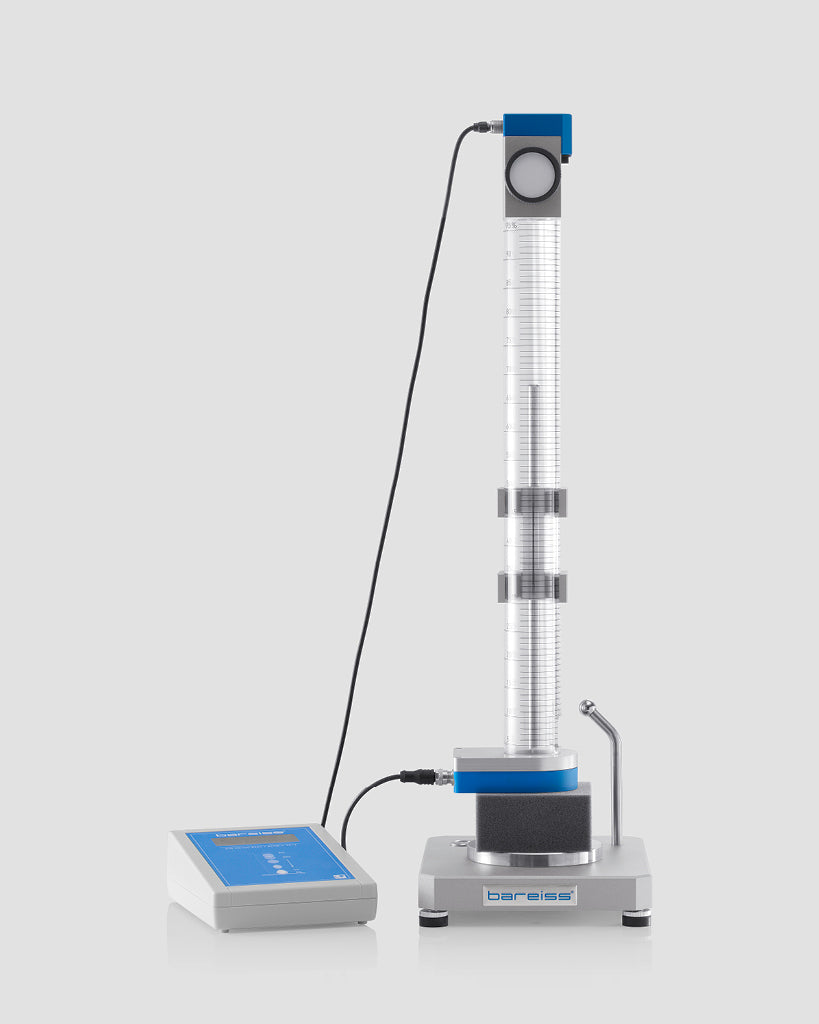

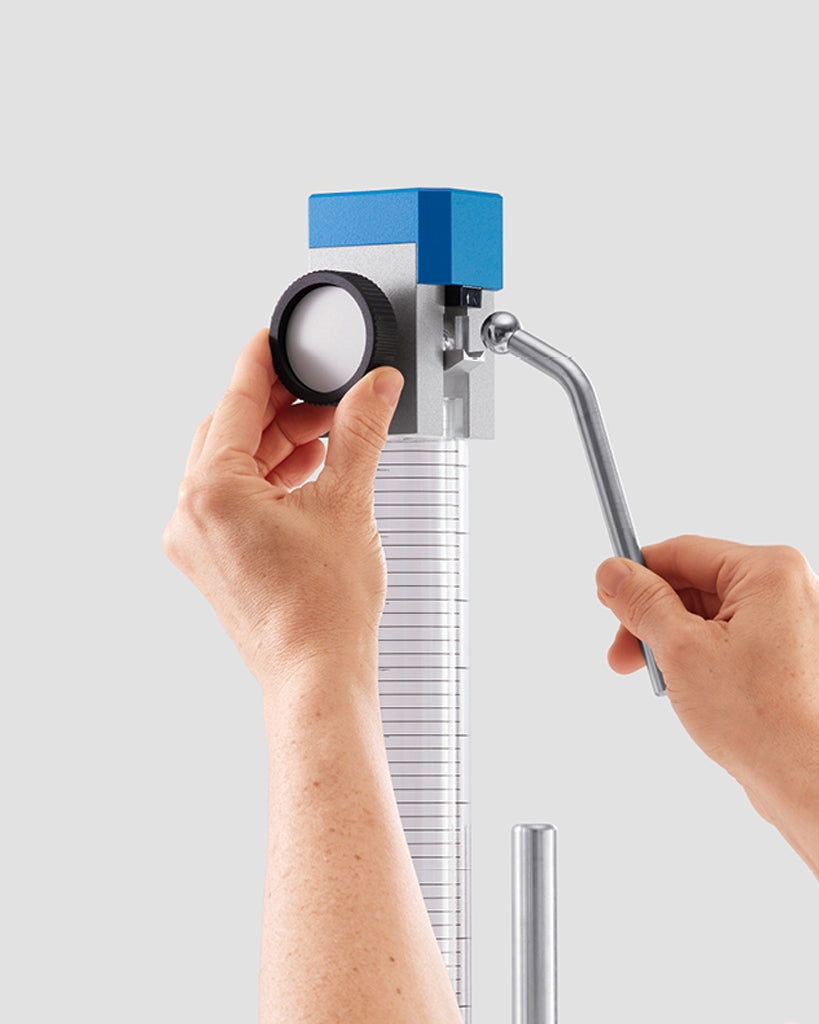

The drop tube can be continuously adjusted to suit specimen thicknesses, while a magnetic holder securely positions the ball until the test begins. Measurement is initiated simply by turning the handwheel, releasing the ball onto the specimen. High-precision sensors automatically detect the rebound height and display the result on the integrated electronic display.
Depending on the selected test mode, the system can display individual measurements, median values, or average results from multiple tests, providing greater flexibility for different testing requirements.
Minimum specimen thickness: 50 mm
Key Features
- Complies with ASTM D3574 and DIN EN ISO 8307
- Accurate electronic measurement of ball rebound height
- Precision vertical guide ensures consistent free-fall testing
- Adjustable drop tube accommodates varying specimen thicknesses
- Magnetic ball holder for secure positioning before testing
- Simple one-step release using an ergonomic handwheel
- Multiple measurement modes, including:
- Single measurement
- ASTM D3574 testing mode
- DIN EN ISO 8307 testing mode
- Average value calculation
- Median value calculation
- Additional Bareiss measurement modes for enhanced analysis
- Clear digital display of test results
- Available with two drop height options:
- 500 mm
- 460 mm
Additional Features
- Graduated scale on the drop tube enables manual verification of rebound height
- High-precision electronic sensors ensure reliable, repeatable measurements
- Fast and intuitive operation for routine laboratory and production testing
- Robust construction designed for long-term laboratory use
Typical Industries
- Foam manufacturing
- Automotive
- Furniture and bedding
- Packaging
- Building and insulation materials
- Research and development laboratories
- Quality control laboratories
