Standards: EN 13286-2 | EN 13286-47 | ASTM D698 | ASTM D1557
Overview

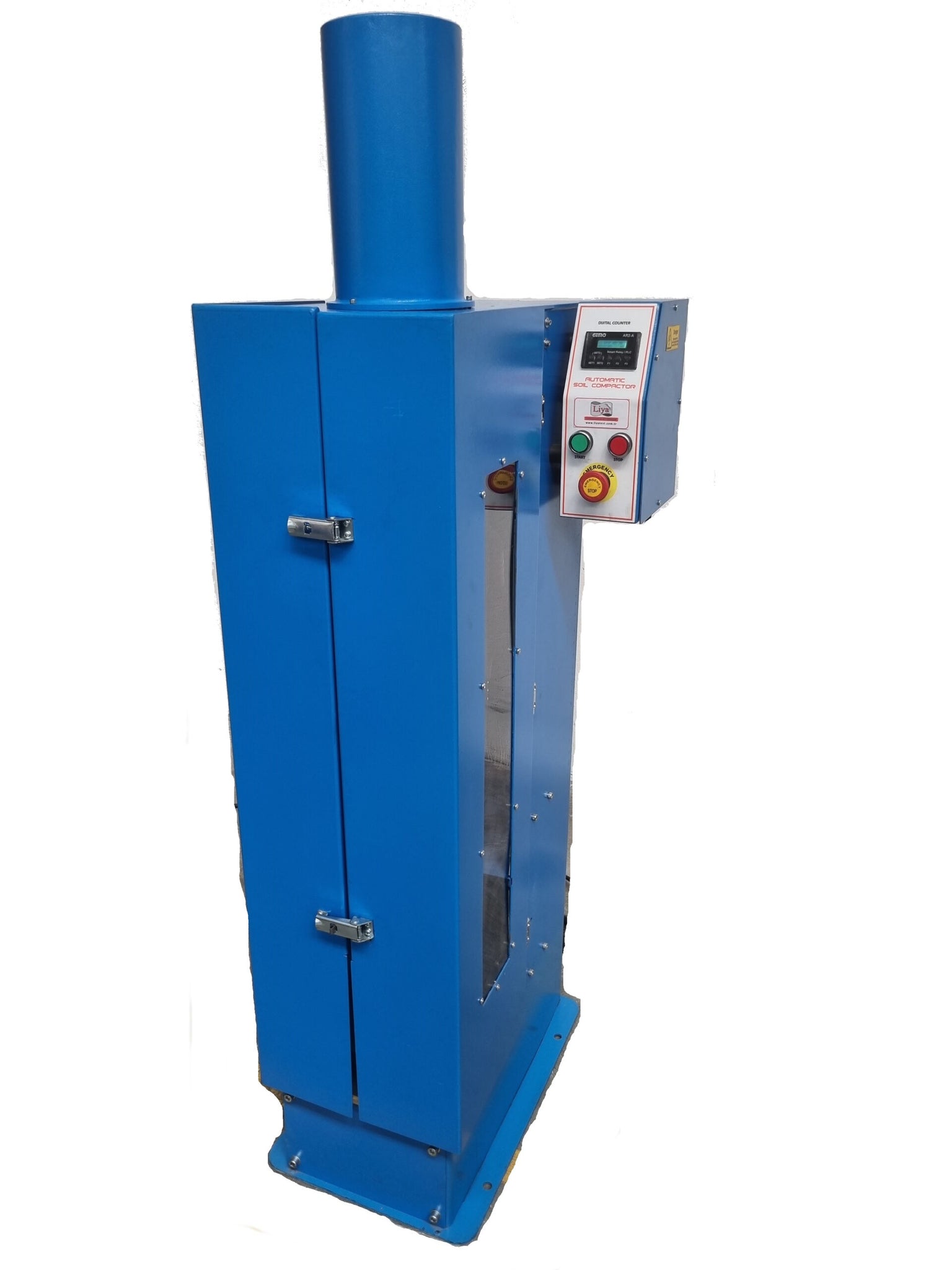

The LT-S0076 Automatic Soil Compactor – Advanced Type is designed for the automatic and uniform compaction of soil specimens for Proctor and CBR testing. The system delivers highly repeatable results while ensuring full compliance with international testing standards.

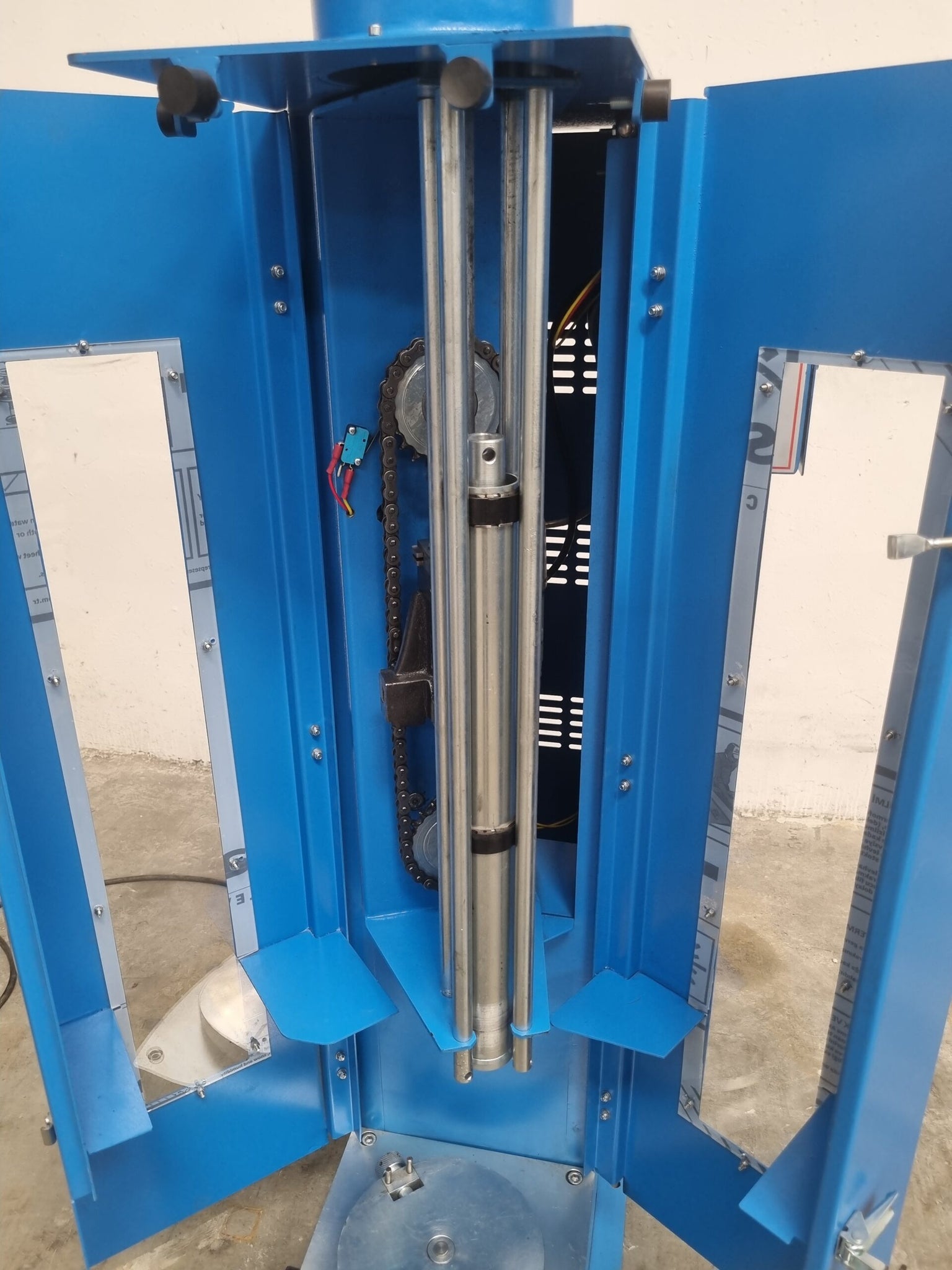

The machine operates by allowing the rammer to fall from a controlled height onto the soil specimen while the mould rotates, distributing compaction blows evenly across the sample surface. This automated process improves testing consistency, reduces operator influence, and increases laboratory productivity.
For 100 mm (4") moulds, the compactor operates on a single radius. For 150 mm (6") moulds, the machine automatically applies blows across both inner and outer radii, ensuring uniform compaction throughout the specimen.
Features
- Fully automatic compaction cycle for consistent test results
-
Adjustable drop heights:
- 300 mm and 450 mm (EN/BS Standards)
- 305 mm (12") and 457 mm (18") (ASTM Standards)
-
Interchangeable rammer diameters:
- 50 mm
- 50.8 mm (2")
- Adjustable rammer weights to suit applicable testing standards
- Rotating mould table distributes blows uniformly across the specimen surface
- Programmable digital controller with automatic operation
- User-selectable test standards, mould sizes, and compaction parameters
- Adjustable number of blows per layer
- User-defined inner and outer blow distribution settings
- Automatic counting and monitoring of compaction cycles
- Heavy-duty construction for long-term laboratory use
Digital Control Functions
The integrated programmable digital controller allows the operator to:
- Select the required testing standard
- Choose mould size and corresponding compaction parameters
- Set the number of blows per layer
- Program custom compaction cycles
- Adjust inner and outer blow distribution patterns
- Automatically monitor and record the compaction process
Specifications
| Parameter | Value |
|---|---|
| Product Code | LT-S0076 |
| Product Name | Automatic Soil Compactor – Advanced Type |
| External Dimensions (W × D × H) | 64 × 34 × 150 cm |
| Weight | 110 kg |
| Power Supply | 220V, 50–60 Hz, Single Phase |
Applications
The LT-S0076 Automatic Soil Compactor is ideal for geotechnical, civil engineering, construction materials, and quality control laboratories performing:
- Standard Proctor Compaction Tests
- Modified Proctor Compaction Tests
- California Bearing Ratio (CBR) Sample Preparation
- Soil Density and Moisture Relationship Testing
Compliance
Designed to meet the requirements of:
- EN 13286-2
- EN 13286-47
- ASTM D698 (Standard Proctor)
- ASTM D1557 (Modified Proctor)
