Auto-Shrink Autogenous Shrinkage Testing System (Model AS-1100)

$0.00
$0.00
Sold out

Auto-Shrink Autogenous Shrinkage Testing System

Accurate, Long-Term Measurement of Autogenous Strain in Cement-Based Materials

The Auto-Shrink AS-1100 is a high-precision digital dilatometer designed to measure unrestrained autogenous shrinkage in cement paste or mortar cured under sealed conditions. This shrinkage, caused by internal chemical reactions without moisture exchange, is a critical property in modern cement research and quality assurance.

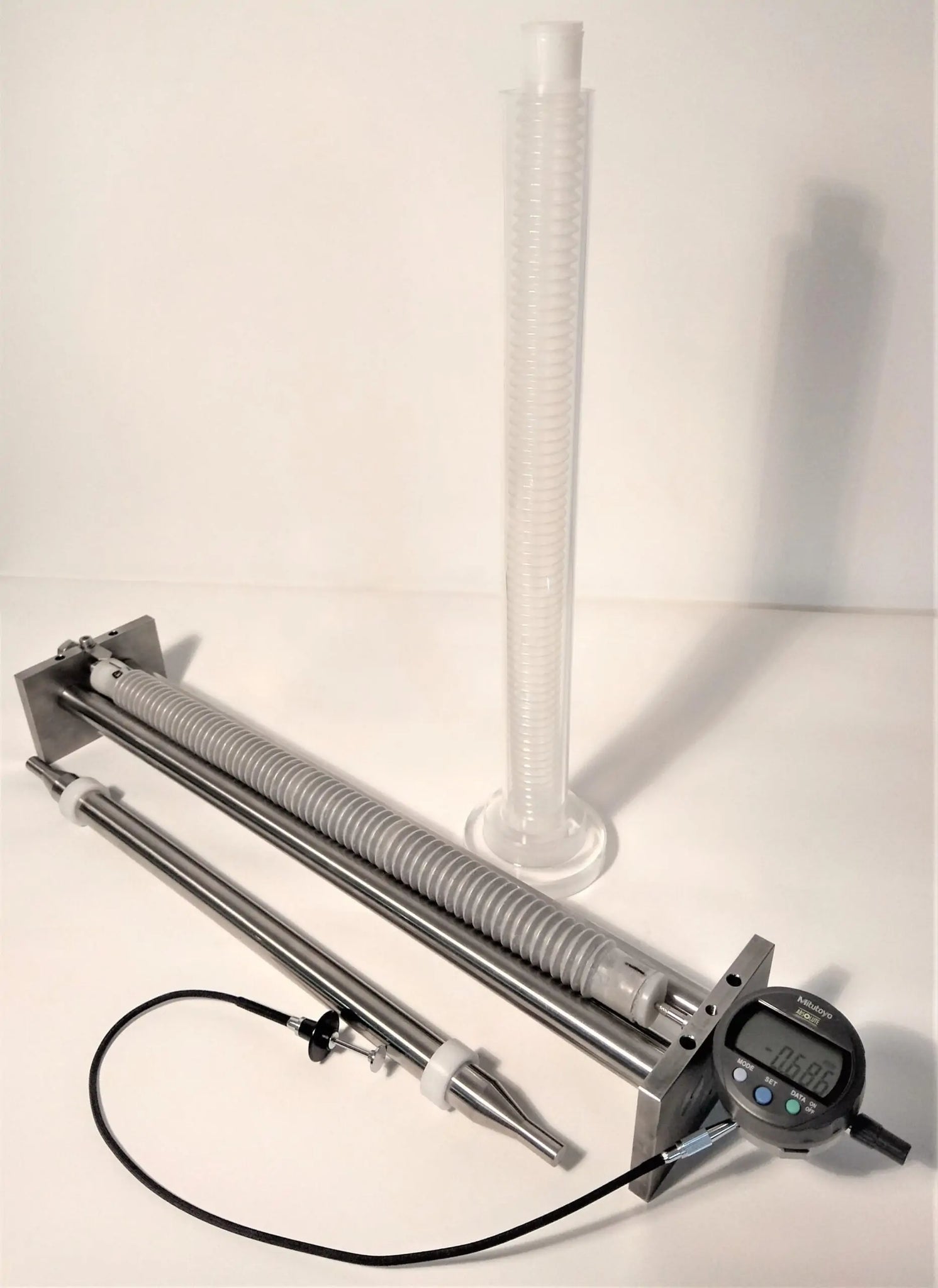

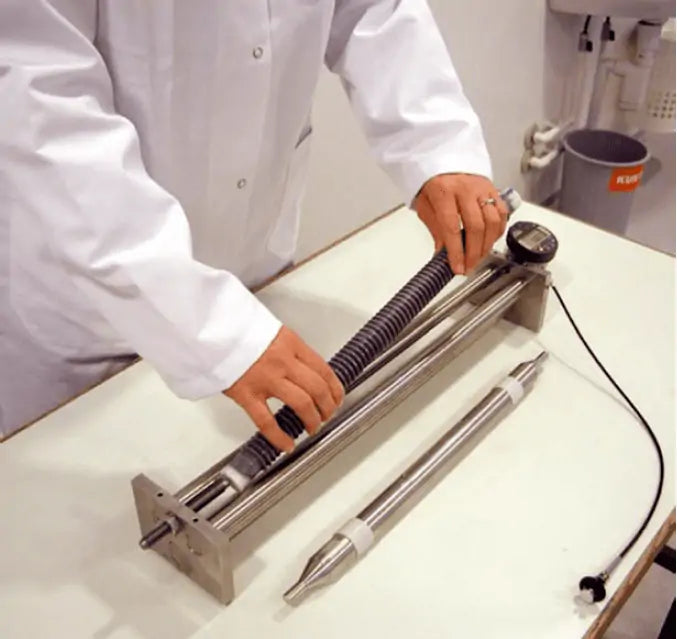

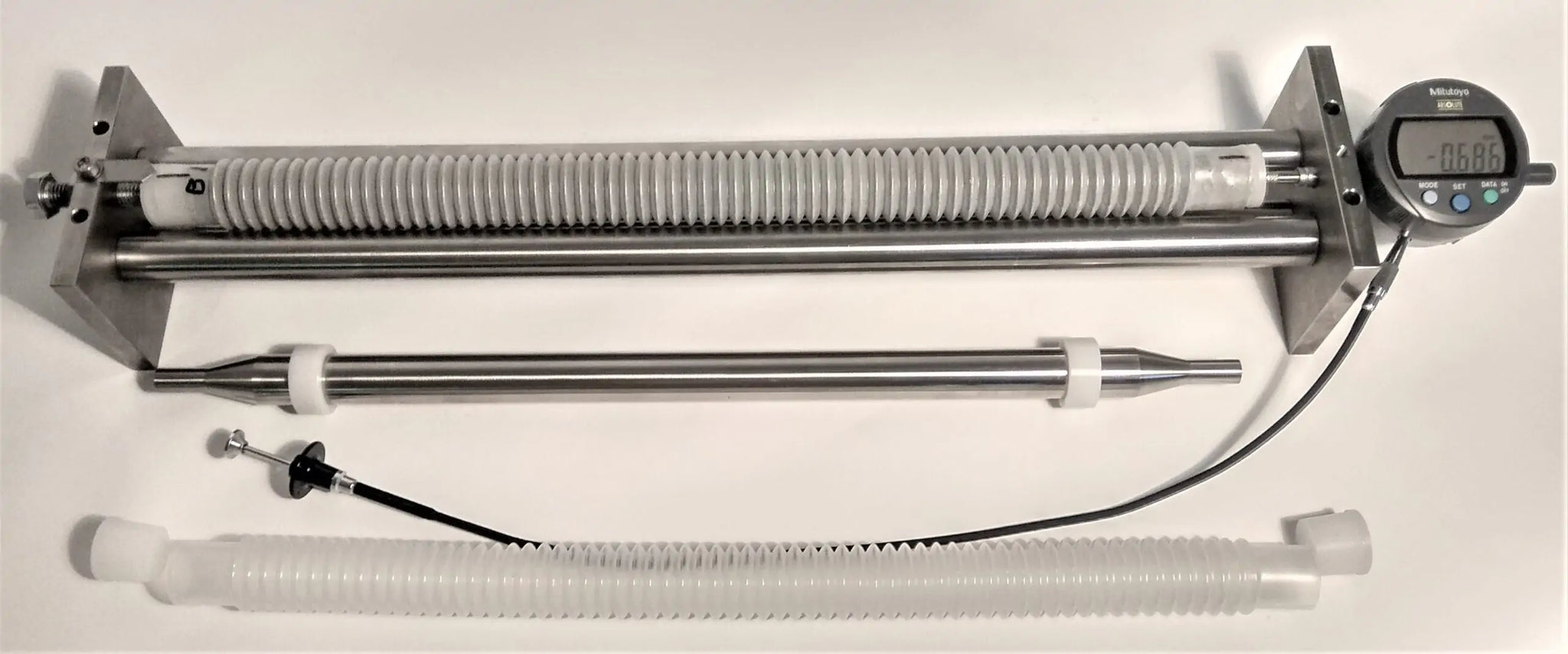

The system features a durable Invar steel support frame and reference bar to minimise thermal expansion and maintain measurement accuracy over time. A specially designed corrugated plastic mould ensures specimens are protected from moisture loss while allowing them to shrink freely.

Ideal for long-term studies, Auto-Shrink enables you to monitor multiple specimens simultaneously, with data collection possible over weeks, months, or even years.

Key Features

  • Rigid Invar steel alloy frame for superior thermal stability

  • High-accuracy digital linear encoder gauge with easy-to-read rotating LCD display

  • Measures time-dependent deformation with exceptional precision

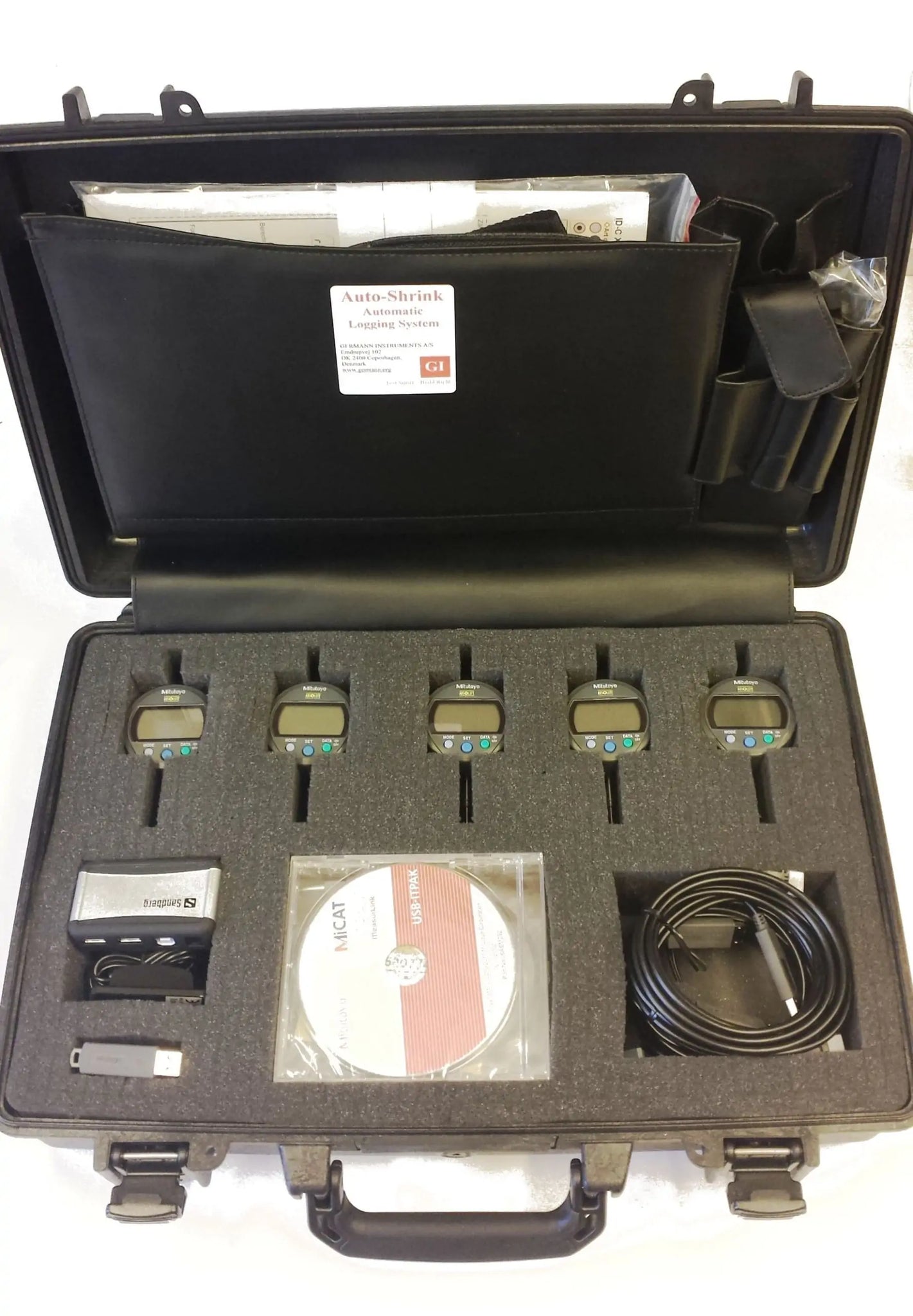

  • Optional USB connection and software for automatic data logging from multiple gauges

  • Suitable for both research and routine quality testing

Technical Specifications

  • Measuring Range: 12.7 mm

  • Resolution: 0.001 mm

  • Accuracy at 20°C: ±0.003 mm

  • Repeatability at 20°C: ±0.002 mm

  • Stem Tip: 8 mm with 1.5 mm carbide-tipped spherical end

  • Battery Life: Approx. 7,000 hours (continuous use)

  • Operating Temperature: 0 to 40°C

  • Storage Temperature: 0 to 60°C

Applications

  • Research into autogenous shrinkage and long-term durability of cementitious materials

  • Performance testing of cement formulations and admixtures

  • Quality control in cement and mortar production

  • Compliance with construction material testing standards

Standards Compliance

  • ASTM C1698 – Standard Test Method for Autogenous Strain of Cement Paste and Mortar

Optional Accessories:

  • USB data cable

  • Multi-channel data logging software

  • Additional moulds for parallel specimen testing

Need more information or a quote?
Contact our team to learn more about how the Auto-Shrink system can support your cement research or production lab.
