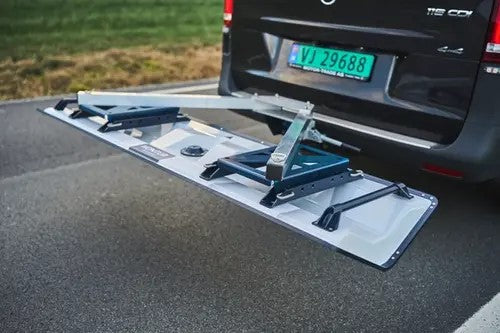

AIR, an innovative air-launched Ground Penetrating Radar (GPR) sensor with patented technology, is designed for high-speed 3-dimensional subsurface assessment. This cutting-edge sensor finds applications worldwide, including high-speed pavement assessment, airport and railroad inspection, and projects requiring a safe distance between the sensor and the ground, such as landmine/improvised explosive device (IED) detection.
Key Features of AIR
- Autonomous and Safer Data Harvesting: Ensures safe and independent data collection.
- Quick, Precise, Safer, and Cost-Effective: Enables efficient data collection with high accuracy and cost-effectiveness.
- Elevation from Road Surface: Facilitates high-speed surveys without disrupting traffic flow.
- Versatile Applications: Used globally for road, rail, and aviation projects; compatible with drones and autonomous systems.
Geospatial Data in 3D
- 7.5 cm channel spacing in the antenna array.
- 30 MHz to 4,500 MHz bandwidth for high-density sampling.
- Detailed subsurface visualisation in three dimensions, geospatially referenced and easily handled in software.
Value-added Features
- Integrated RTK GPS & IMU for easy deployment and accurate positioning.

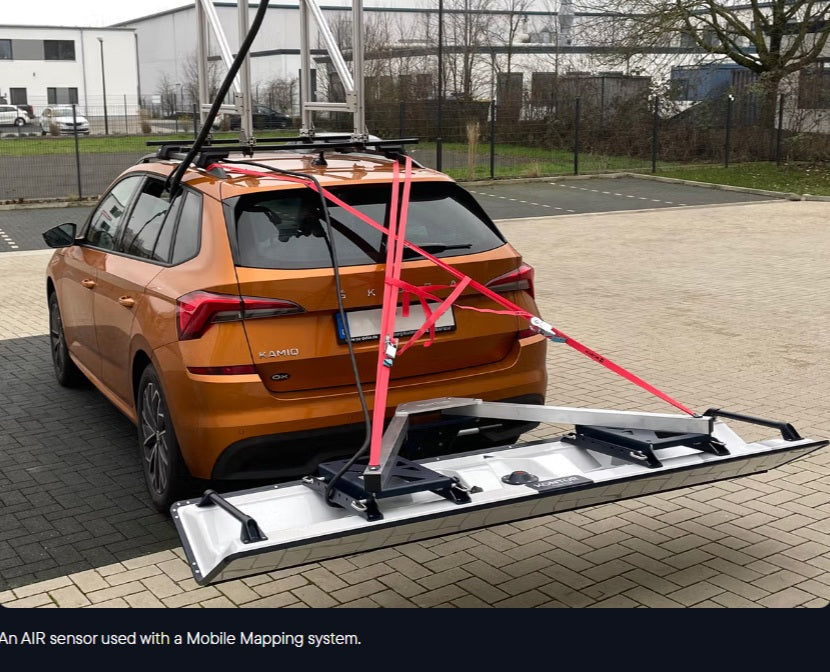

- Compatibility with mobile mapping solutions and external positioning systems.
- Flexible usage: can be used as a standalone sensor or integrated into a survey vehicle.
Models
|
|
AIR 1212 |
AIR 1820 |
AIR 2124 |
AIR 2428 |
AIR 3036 |
|
NO. OF CHANNELS |
12 |
20 |
24 |
28 |
36 |
|
SCAN WIDTH (m) |
0.9 m |
1.5 m |
1.8 m |
2.2 m |
2.7 m |
|
SCAN WIDTH (ft) |
2.95 ft |
4.92 ft |
5.90 ft |
6.88 ft |
8.86 ft |
|
SIZE |
1.21 x 0.56 x 0.23 m |
1.81 x 0.56 x 0.23 m |
2.11 x 0.56 x 0.23 m |
2.41 x 0.56 x 0.23 m |
3.01 x 0.56 x 0.23 m |
|
WEIGHT |
22 kg |
33 kg |
38 kg |
44 kg |
56 kg |
Kontur, based in Norway, leads in the development and manufacturing of innovative Ground Penetrating Radar (GPR) technology, contributing to the industry's advancement. This non-destructive testing method provides superior subsurface insights, ensuring the safety and prosperity of communities. Hylec Controls is supplier of Kontur products for Australia and New Zealand.
