Discover VIY5-600 Penta: The User-Friendly and Cost-Effective Solution for Geophysical and Archaeological Investigations
VIY5-600 Penta is a versatile and affordable system designed for diverse applications in geophysics and archaeology. With its advanced features and simplified interface, this system enables quick and efficient detection of the position and depth of both metallic and non-metallic objects.
Key Features:
-
Detect a Wide Range of Objects: VIY5-600 Penta allows you to accurately locate and determine the depth of various objects, including metal utilities such as pipes and cablGes, non-metallic pipes (PVC and asbestos cement), concrete sewer systems, buried tanks and barrels, and subsurface objects like voids, cracks, and heterogeneous inclusions.
-
GPR Antenna with Advanced Capabilities: The system features a shield antenna system that offers reliable performance. The antenna can be used with a cart or in manual mode, providing flexibility for different surveying scenarios. It includes an exchangeable bottom protector, "Telbin" technology for optimal data collection, built-in tilt sensors, a robust fiberglass body, and low power consumption, ensuring over 8 hours of continuous operation.
-

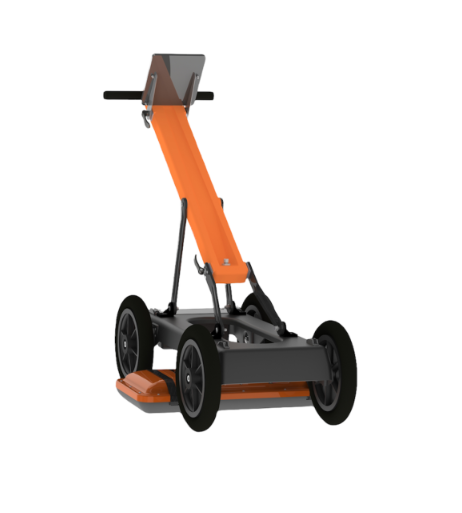

Robust Compact Foldable Cart: The included cart is designed with convenience and durability in mind. Its lightweight design allows for easy transportation, and it quickly folds up for compact storage. The cart features a built-in odometer, making it suitable for use on rough terrain. It also includes a screw-bolt for GPS receiver fixing, a simple adjustable antenna mount, a built-in battery compartment with a sealed lead-acid battery that is easy to replace and widely available worldwide.
-
Easy Connections and Compatibility: VIY5-600 Penta offers convenient USB connections and easy-to-use push-pull connectors for hassle-free setup. The system supports standard extenders and allows for simple setup of WiFi. It can be connected to any Windows-based computer, with the antenna directly connecting to the PC. Additionally, the system is compatible with any external GPS receiver, which can operate as a trigger device.
VIY5-600 Penta Specifications:
- Channels Number: 5
- Antenna Frequency: 600 MHz
- Survey Window: 34, 51, 68, 85 ns
- Depth of Sounding: Up to 3.5 m (determined by soil properties)
- Spatial Resolution: Better than 0.14 m
- Trigger Mode: Single, internal, external
- Antenna Dimensions (L x W x H): 1100 x 290 x 120 mm
- Cart Dimensions (Working Mode L x W x H): 900 x 1100 x 1050 mm
- Cart Dimensions (Folding Mode L x W x H): 900 x 460 x 300 mm
- Antenna Weight: 9.0 Kg
- Antenna with Cart Weight: 22 Kg
- Operating Temperature Range: -20°C to +40°C
- Operation Time: Not less than 8 hours
Experience the user-friendly and cost-effective power of VIY5-600 Penta for your geophysical and archaeological investigations. Its advanced features, compatibility with standard equipment, and robust design make it the ideal solution for professionals in the field. Uncover hidden depths with VIY5-600 Penta today!
